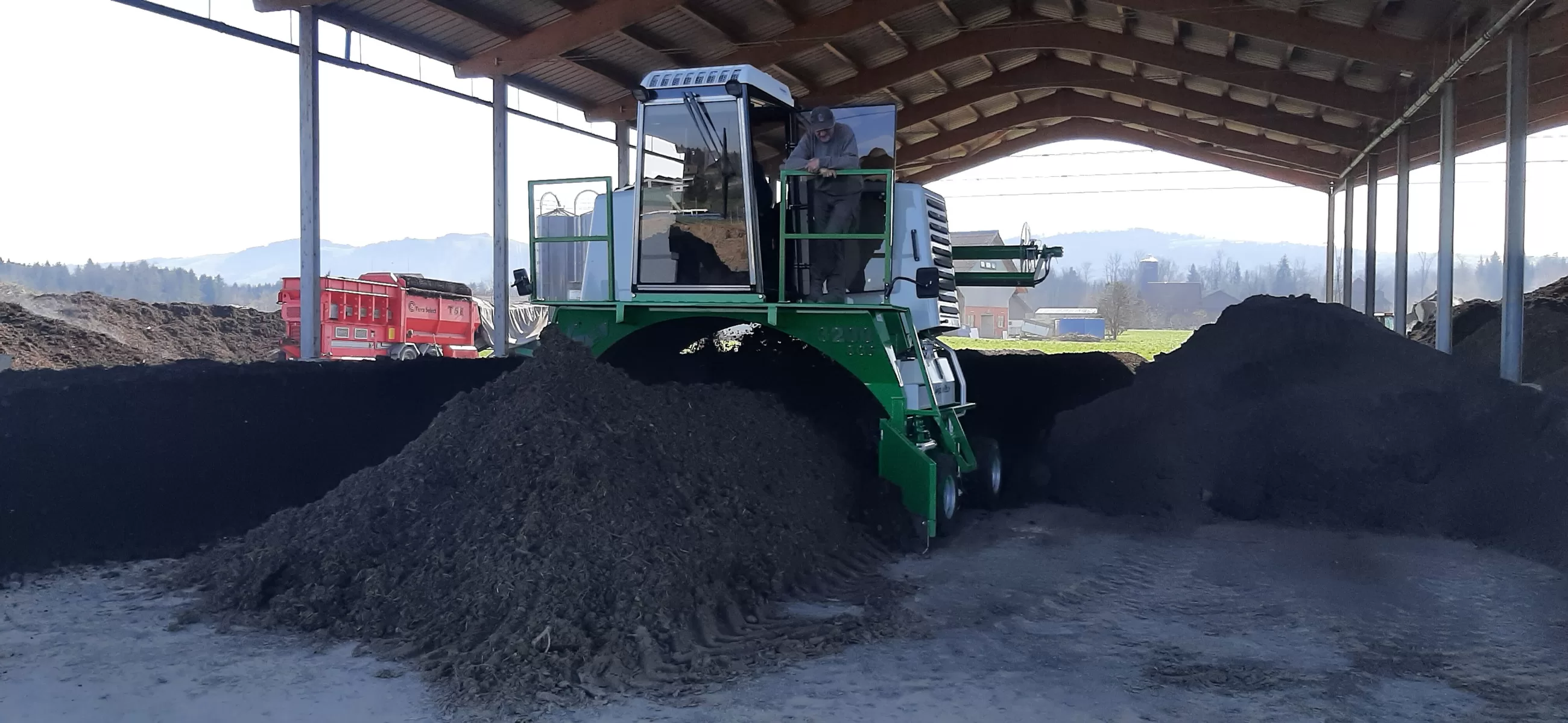

Compost turner Gujer SGF 3100-S

Working width up to: 3.5 meters

SGF 3100-S technicl data.

  • Conversion rate up to 1000 m³/h
  • Engine power with particle filter 135 hp
  • Dislodging speed up to 3.5 km/h
  • Working pressure of the hydraulics, roller up to 320 bar
  • Working pressure of hydraulics, LS pump up to 210 bar

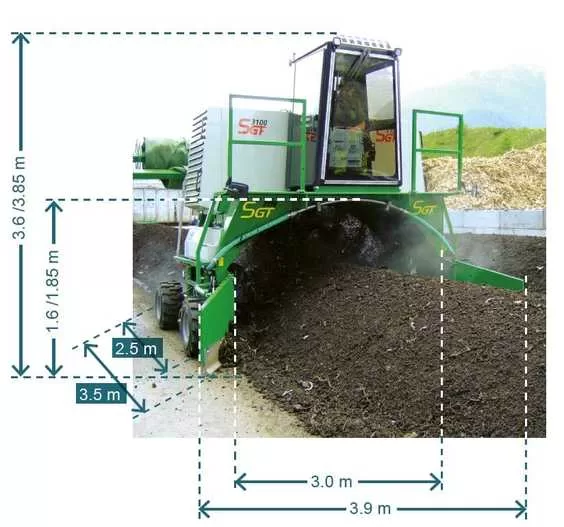

  • Tunnel width 3.0 m
  • Working width up to 3.5 m
  • Total width without web winder 3.9 m
  • Total width with fleece winder 4.77 m
  • Total length (tags folded) without fleece winder 2.5 m
  • Total length (tags folded) with fleece winder 3.5 m
  • Total height (standing/riding) 3.6/3.85 m
  • Tunnel height (standing/driving) 1.65/1.85 m
  • Working speed, ideally 300 - max. 400 m/h
  • Weight 5'500 kg
  • Rent width x height max. 3.5 x 1.6 m


Dimensions for transport (LxWxH)

  • 2.52 x 4 x 2.95 m (without fleece winder)
  • 2.52 x 4.65 x 2.95 m (with fleece winder)


Basic equipment for SGF 3100-S

  • 2-door driver's cab
  • Air conditioning
  • Heating
  • Comfort seat
  • Single lever control
  • Tempomat
  • Radio
  • Diesel engine Perkins Tier 4i (135 hp)with original particulate filter
  • Control systems to monitor the hydraulicunits and engine
  • Lighting system with 3 LED working lights
  • Front and rear wipers
  • Tires 26 x 12.00-12 PR


Options for SGF 3100-S

  • Even, Effective and efficient loosening of the compost material so that the Oxygen can circulate optimally. Thus we grant an optimal rotting process. On the basis of the white line you can see impressively the Loosening before and after the transfer.

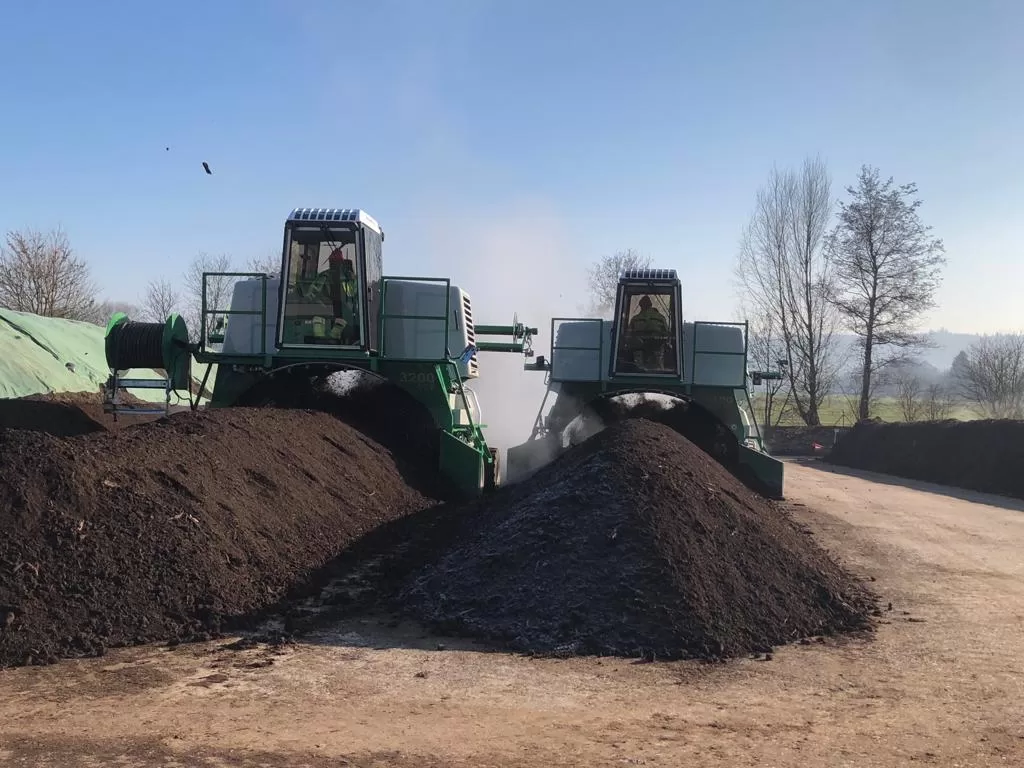

  • Fleece winder hydraulically adjustable in height with quick change system
  • Remote control for fleece winder (1-man operation)
  • Simple irrigation with water bar, connection on the side left and right
  • Electric shut-off of the water bar via switch in cabin
  • Hose reel with automatic winding, unwinding, up to approx. 80 meters
  • Hose reel with additional hose guide (if over 80 meters desired)
  • Reserve valve in valve bank (for retrofits of e.g. winder, irrigation, etc.)
  • Electric motor with control cabinet and socket instead of diesel engine
  • 2 exterior mirrors
  • Active carbon filter for cabin
  • Rear view camera









Ideal for larger companies and communes with composting from 2,000 to 10,000 tons per year.

  • Conversion capacity up to 1000 m³/h.
  • Hydraulic - infinitely variable - all-wheel drive allows turning in the smallest place.
  • Height-adjustable relief chassis automatic for turning - with tank steering
  • Easy operation with the single lever control with automatic speed control. Allows for automatic driving.
  • Sour Danfoss control electronics
    • .
  • 150 hp Perkins engine with particulate filter complies with latest emission regulations.
  • The massive arch construction of the tunnel made of 6 mm steel achieves a very great stability, has no weak corner points and the Powder coating prevents corrosion.
  • Wear plates made of chrome steel.
  • The Transfer shaft is hydraulically driven, infinitely adjustable and reversible (forward and reverse rotation of the shaft) - independent of the motor speed.
  • Overload protection. Travel speed is automatically reduced.
  • Robust, balanced transfer shaft that properly transfers the material to be composted (from the inside to the outside).
  • Compact design; machine width 4.0 m / windrow width up to 3.5 m
  • Fast aerobic composting; within 8 - 12 weeks, depending on the material.

Basic equipment:

  • Perkins Tier 5 diesel engine (135 hp) with Adeblue particulate filter
  • Control systems for hydraulic units and engine
  • Lighting system with 4 LED work lights
  • Front and rear windscreen wipers
  • 26 x 12.00-12 PR tyres
  • 2-door driver's cab
  • Air conditioning
  • Heating system
  • Comfort seat
  • Single lever control
  • Cruise control
  • Radio

Options retrofittable such as:

  • Fleece winder hydr. height-adjustable with quick-change system
  • Radio remote control for fleece winder (1-man operation)
  • Simple watering with water bar, connection on the side l/r
  • Electrical switch-off of the water bar via switch in the cab
  • Hose reel with automatic winding and unwinding, up to approx. 80 metres
  • Hose reel with additional hose guide (if over 80 metres)
  • Reserve valve in valve bank (for retrofitting e.g. winders, irrigation etc.)
  • Electric motor with switch cabinet and socket instead of the diesel engine
  • 2 exterior mirrors
  • Activated charcoal filter for cab
  • Reversing camera (2 units, 1 screen)
  • Irrigation pipe with flapper nozzles (7 pcs.)
  • Inoculation tank with pump and nozzles

Automatic monitoring systems to protect the machine:

  • Too much / too little hydraulic oil
  • too warm hydraulic oil
  • too little system pressure
  • Pressure of the engine oil
  • temperature of the engine
  • Water temperature
  • Wall pressure
