Berry Harvester JAREK 5

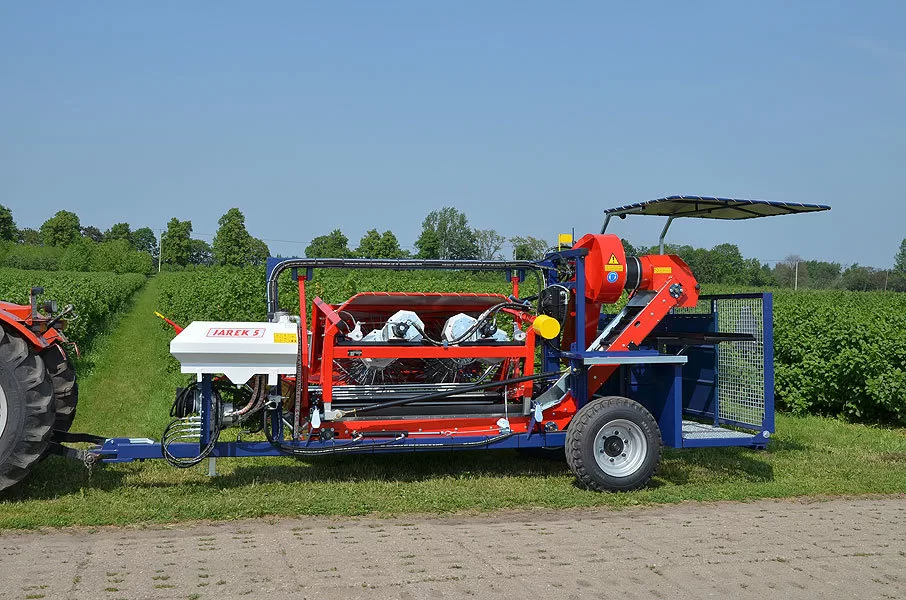

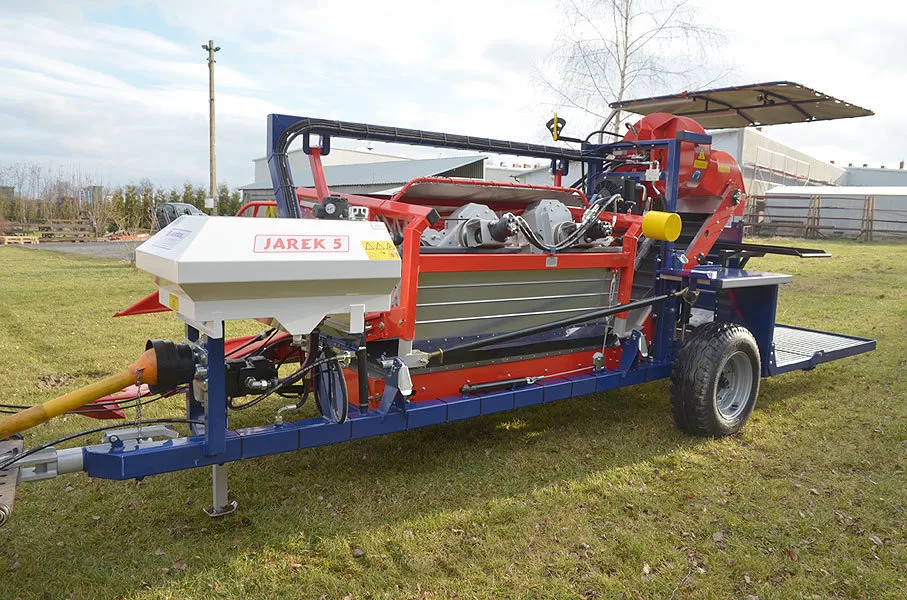

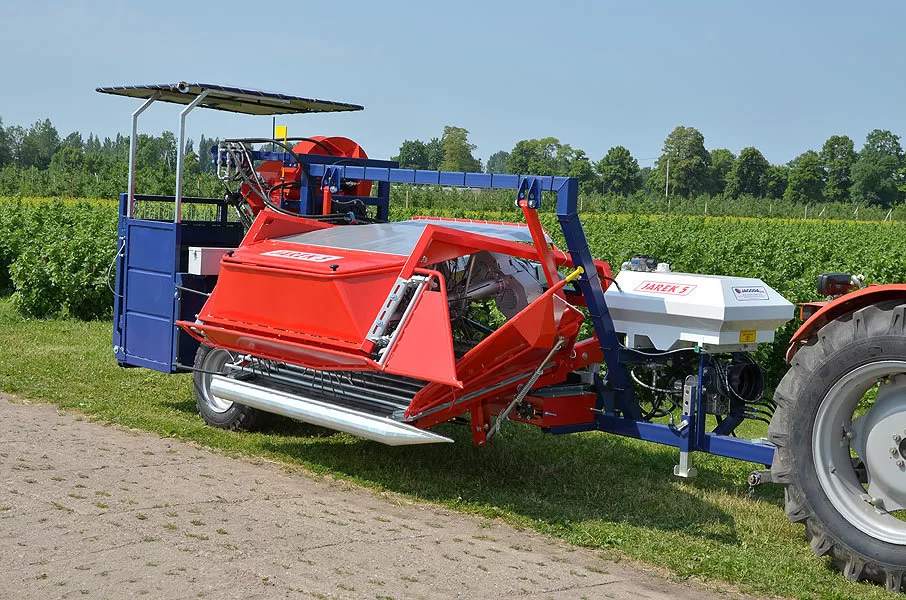

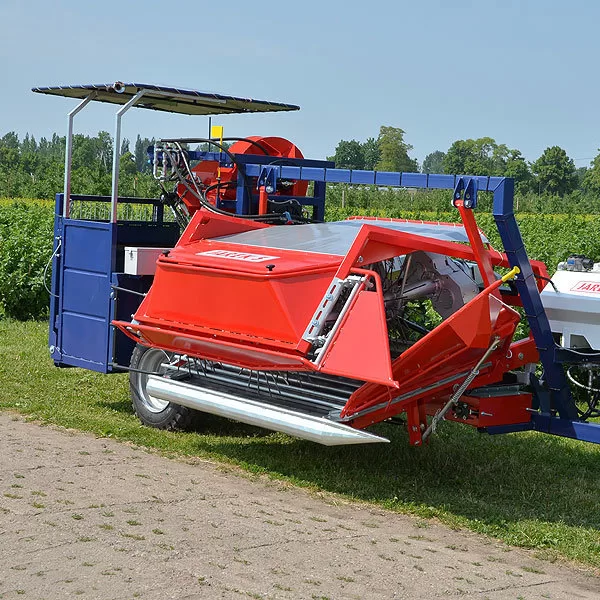

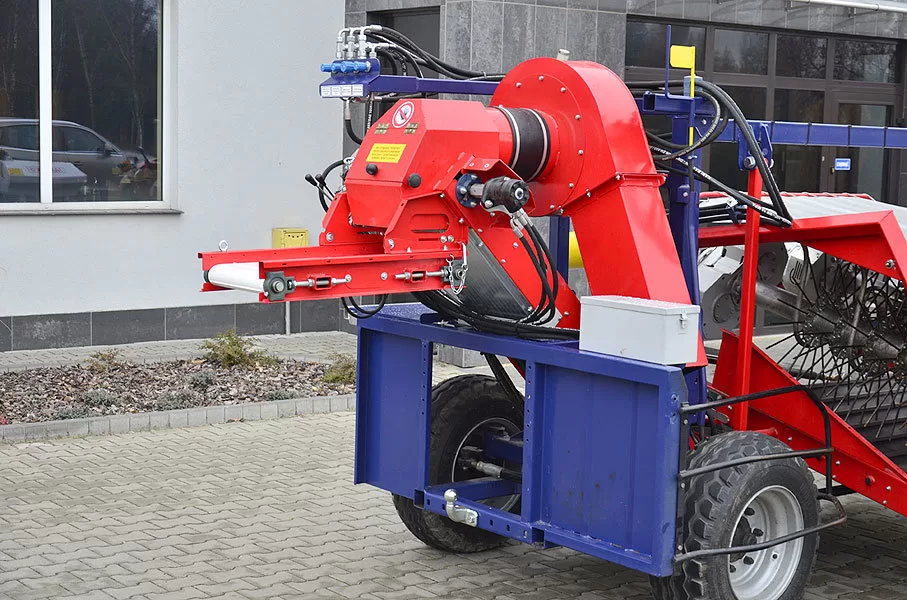

JAGODA JAREK 5 is the latest version of the half-row harvester designed to collect berries such as blackcurrants, redcurrants, gooseberries, saskatoon berries, rosehips, and other berries such as haskap berries ( honeyberries ), autumn-fruiting raspberries, and ronia berry.
- The JAGODA JAREK 5 berry harvester harvests berries from plantations where the bushes are planted in rows with a distance between the rows of at least 4 meters.
- The desired distance between the bushes is 0.5-0.7 meters.

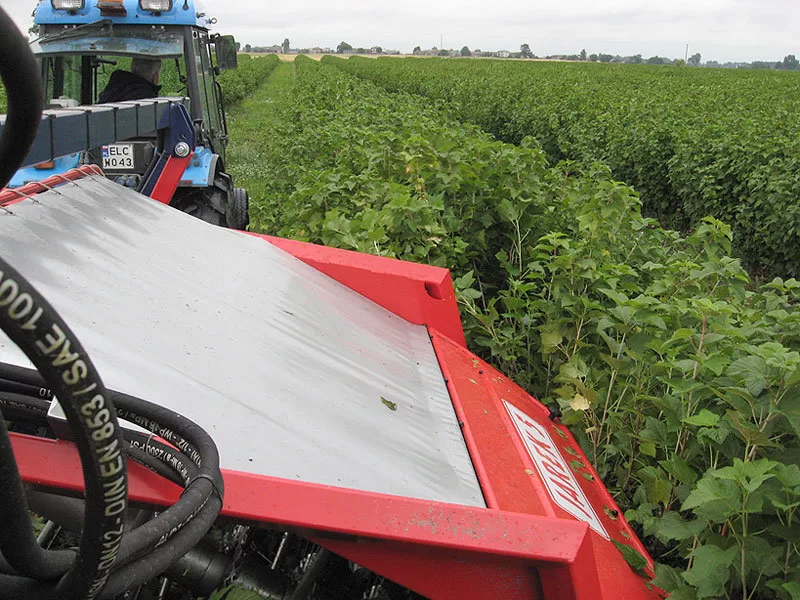

- The harvester harvests half of the row of bushes, so in order to harvest the entire bush, the row with the harvester must pass along both sides.
- The working speed of the harvester depends on the volume of the harvest - the more berries and the greater the harvest, the lower the working speed.
- The JAGODA JAREK 5 berry harvester is a simple construction machine, which, with the correct adjustment of the working mode and the selection of the appropriate working speed, is able to harvest up to 99% of the harvest.
Berry harvester JAREK 5 versions depending on the capacity:

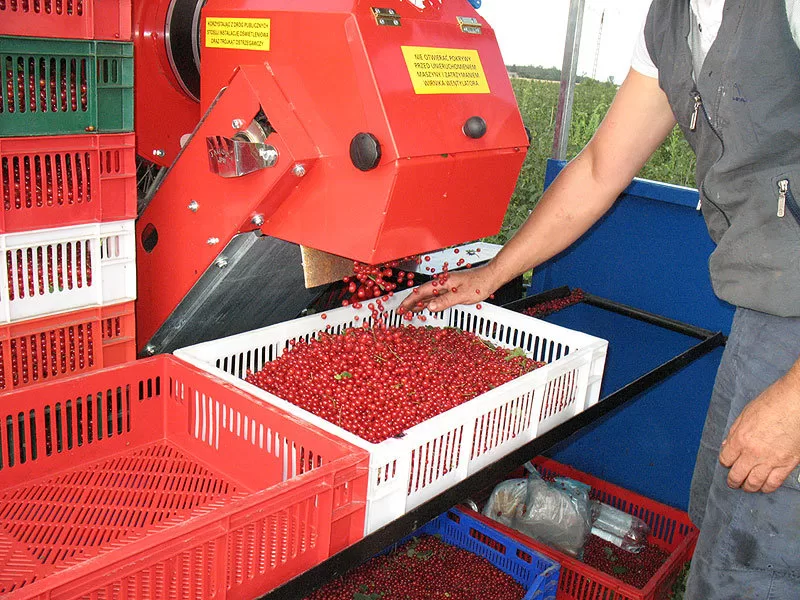

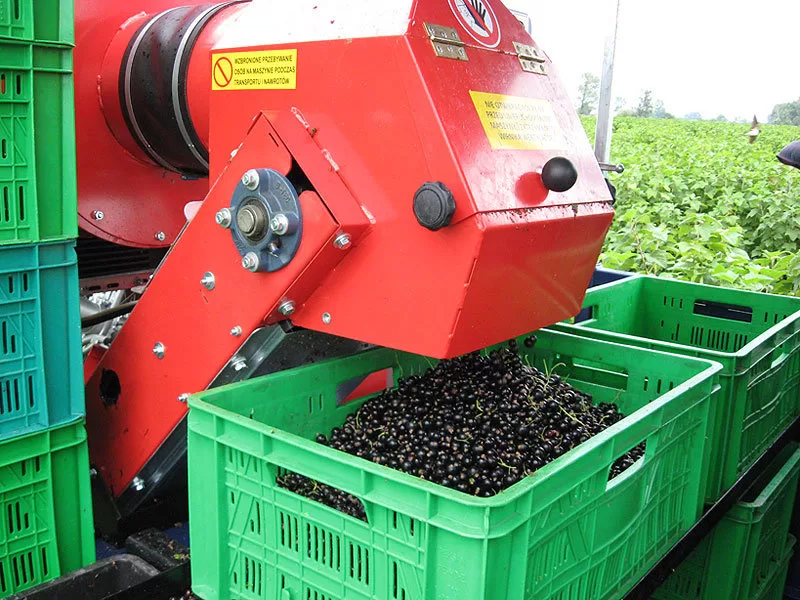

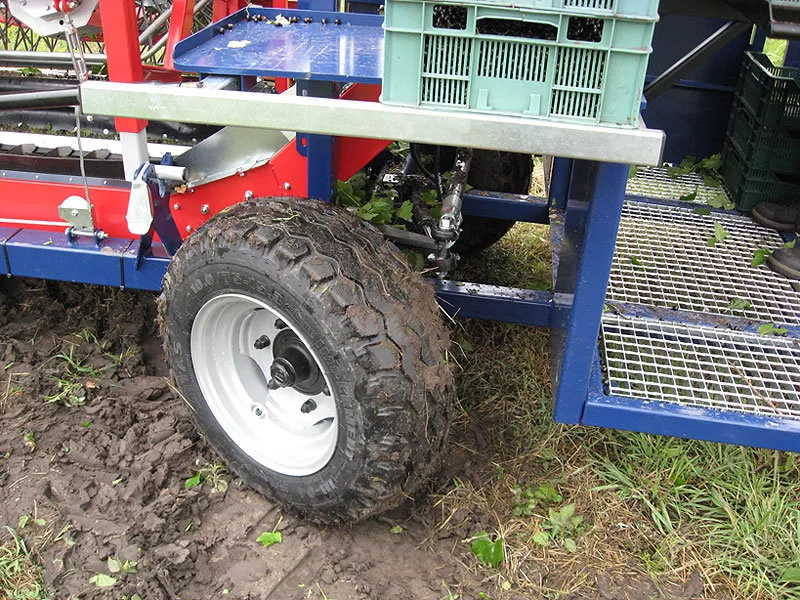

- For picking berries in 10 kg boxes
- For picking berries in pallet-shaped 500 kg containers

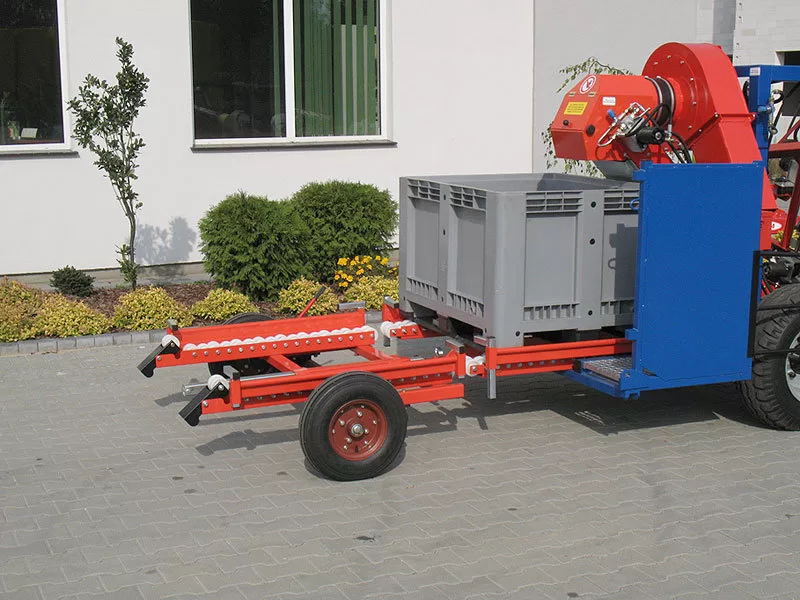

- For picking berries in pallet-shaped 500 kg containers with a specialized trailer for 3 containers
| Attaching method: | Hook to the tractor joist. Category 2 |
| Drive: | External hydraulics of the tractor – control of the harvester’s operating assembly. A drive of workgroups – hydraulic pump through the transmission. |
| Tractor power demand: | Min. 22 kW / 30 Hp |
| Working speed: | 0.6-1.5 km/h |
| Output: | 0.1-0.2 ha/h |
| Working Width: | 2,6 m |
| Shipment Width: | 2,4 m |
| Working Length: | 6,1 m |
| Shipment Length: | 5,10 m |
| Working Height: | 2,50 m |
| Shipment Height: | 2,00 m |
| Weight: | 1 950 kg |
| Required staff: | Tractor operator + 1 |
