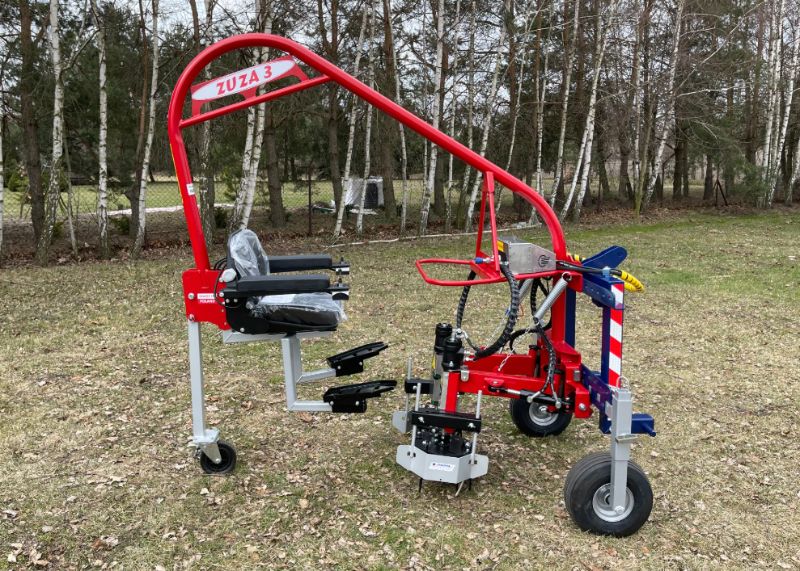

Eco Weeder ZUZA 3

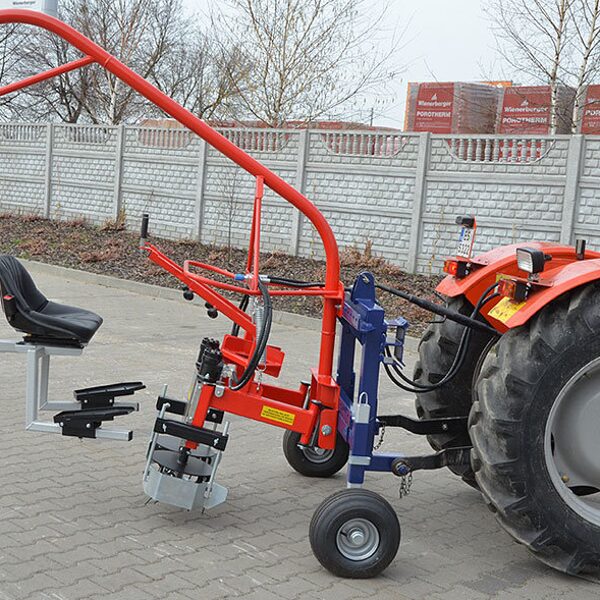

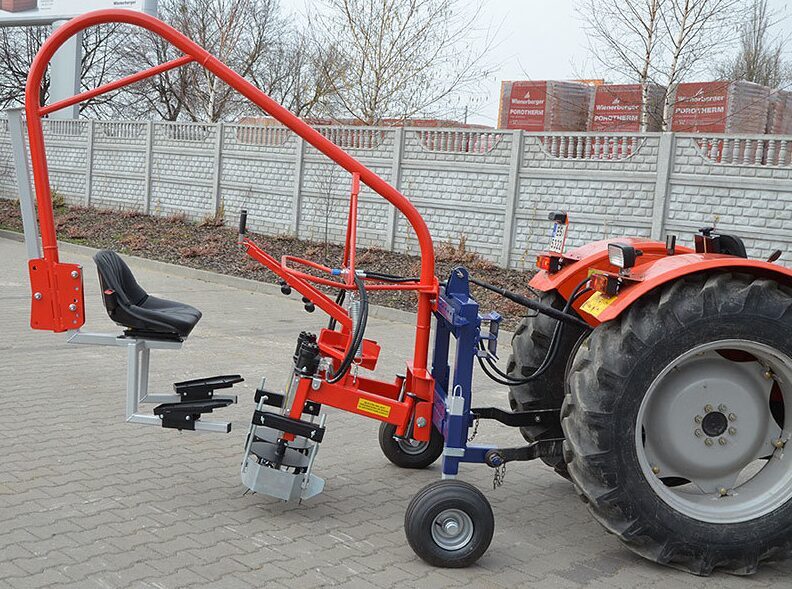

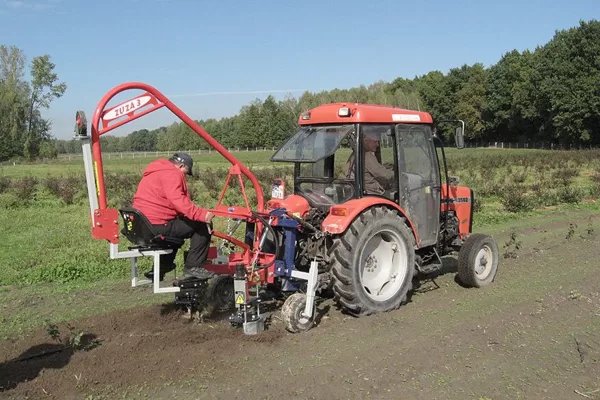

Mechanical hydraulic weeder ZUZA 3 equipped with rotary heads and joystick control designed for weed control in crops growing in rows. The aim is to use in various BIO farms for weeding between plants and different row distances.

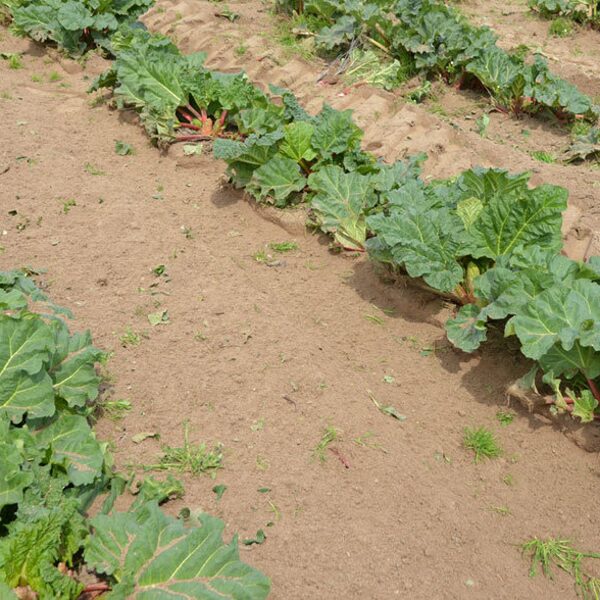

Eco hydraulic weeder for vegetables ZUZA 3 is adapted for weeding rows of vegetable crops, lavender, lettuce, pumpkins, rhubarb, corn, strawberries, young currants, Aronia berries, flowers, tobacco, cabbage, green beans, sunflower, soybean, leeks, tomatoes, artichokes, asparagus, nurseries, aromatic and medicinal herbs, and other plants up to a height of 0.55 meters.

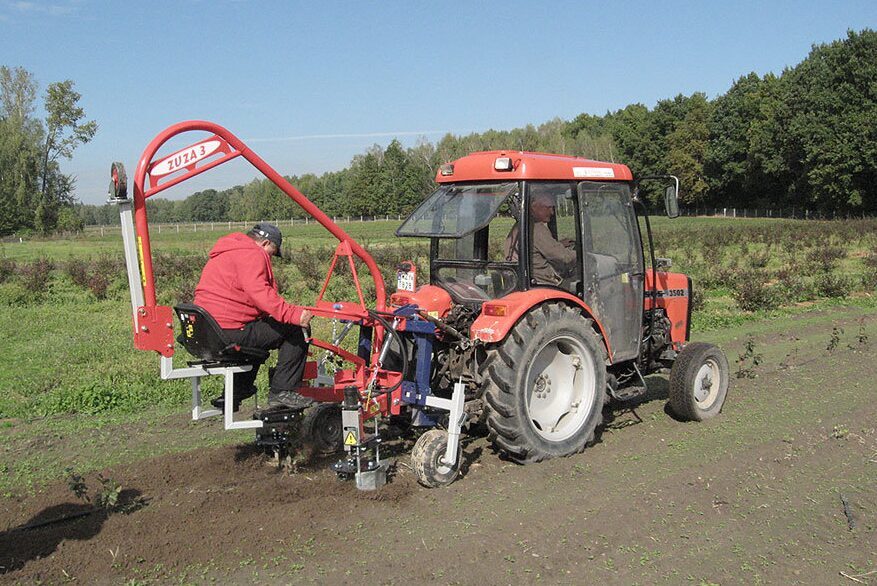

The Eco hydraulic weeder for vegetables is designed for mechanical weed control in bio farms with crops growing in rows, at a spacing to allow the tractor to pass on a cultivated lane.
The Eco weeder ZUZA 3 with rotary heads is suitable for weed control between plants and rows, the aim is to fit different plants and different row distances under various types of soils for organic farming.

Features of Eco hydraulic weeder ZUZA 3:

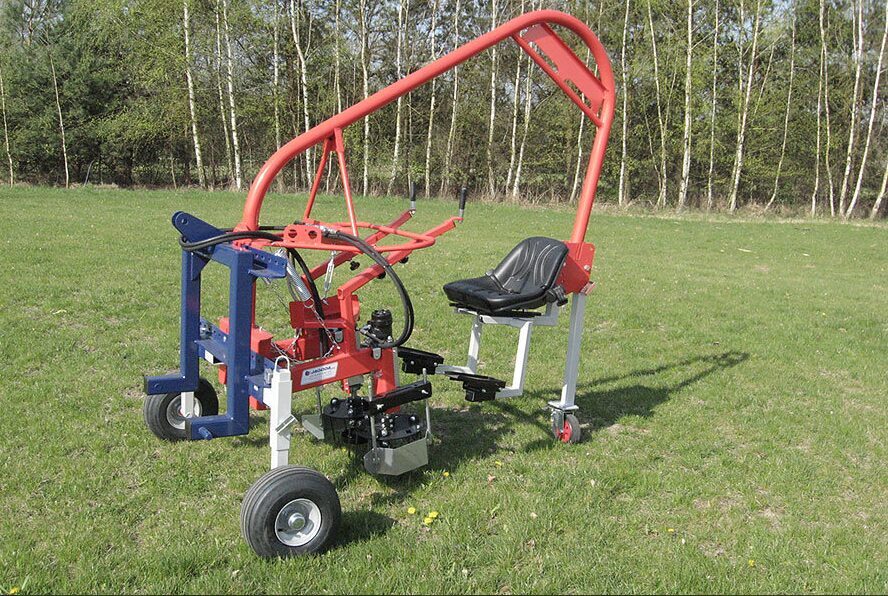

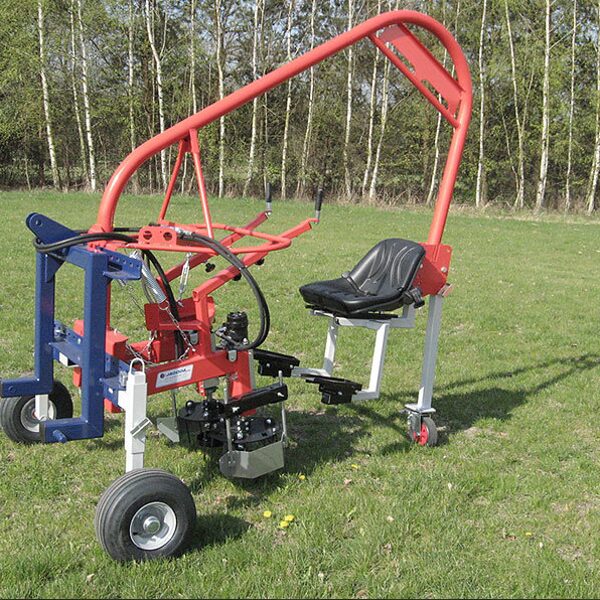

Adjustable seat and it’s equipped with a seatbelt
Adjustable wheels, feet, and handles
Mechanical shifting by 40 cm on the frame for each row.

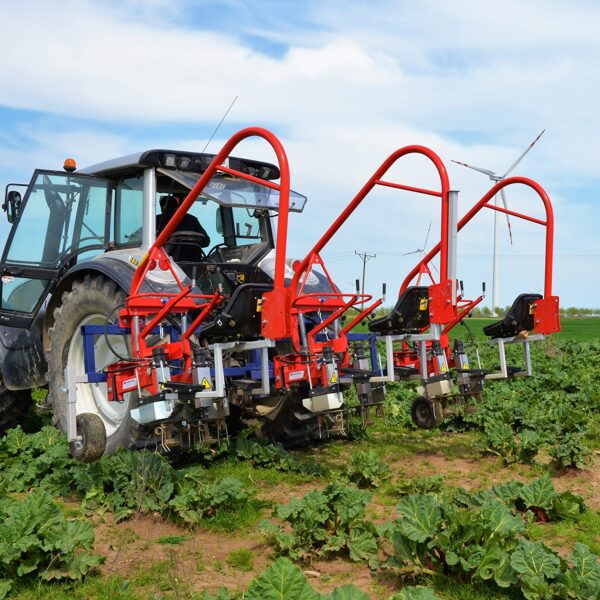

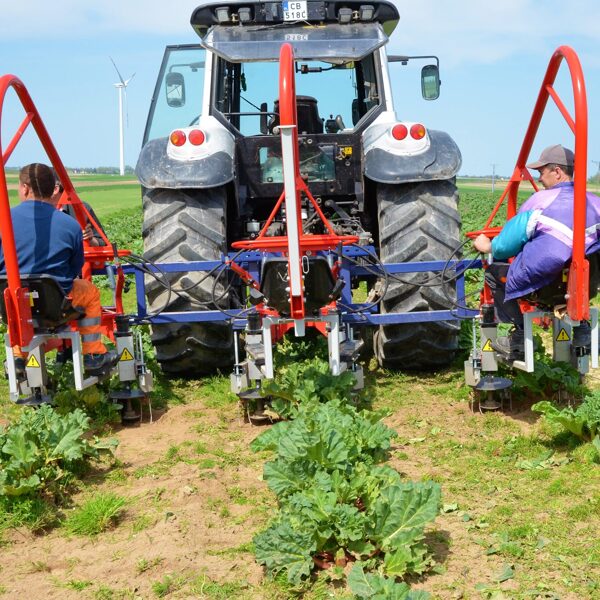

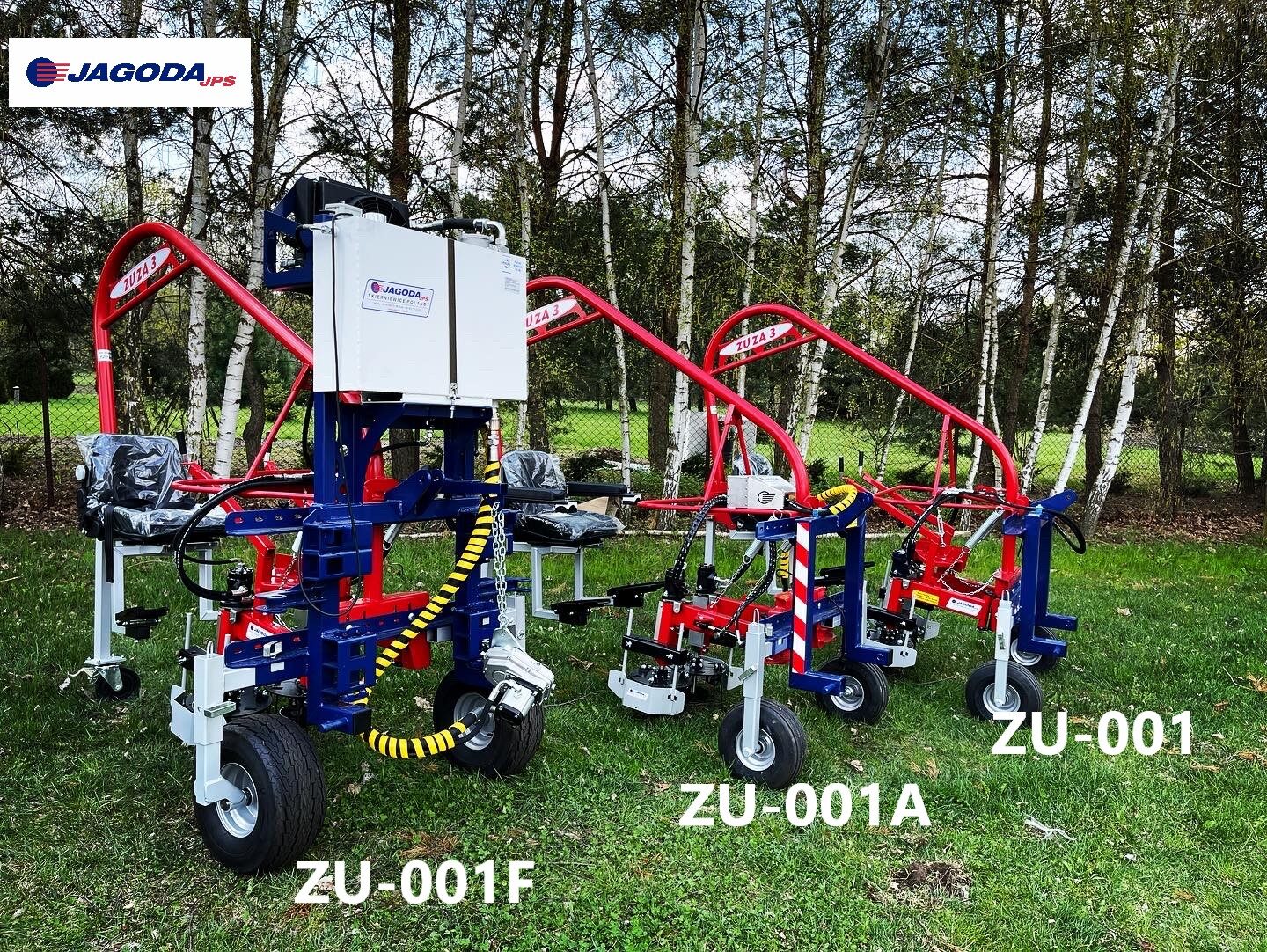

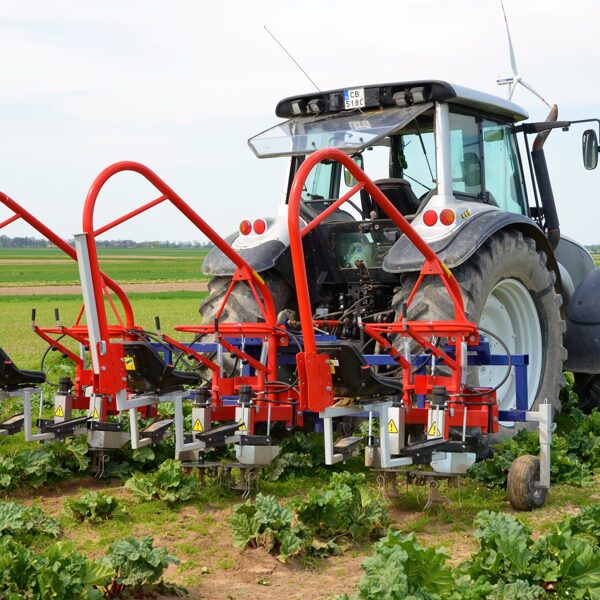

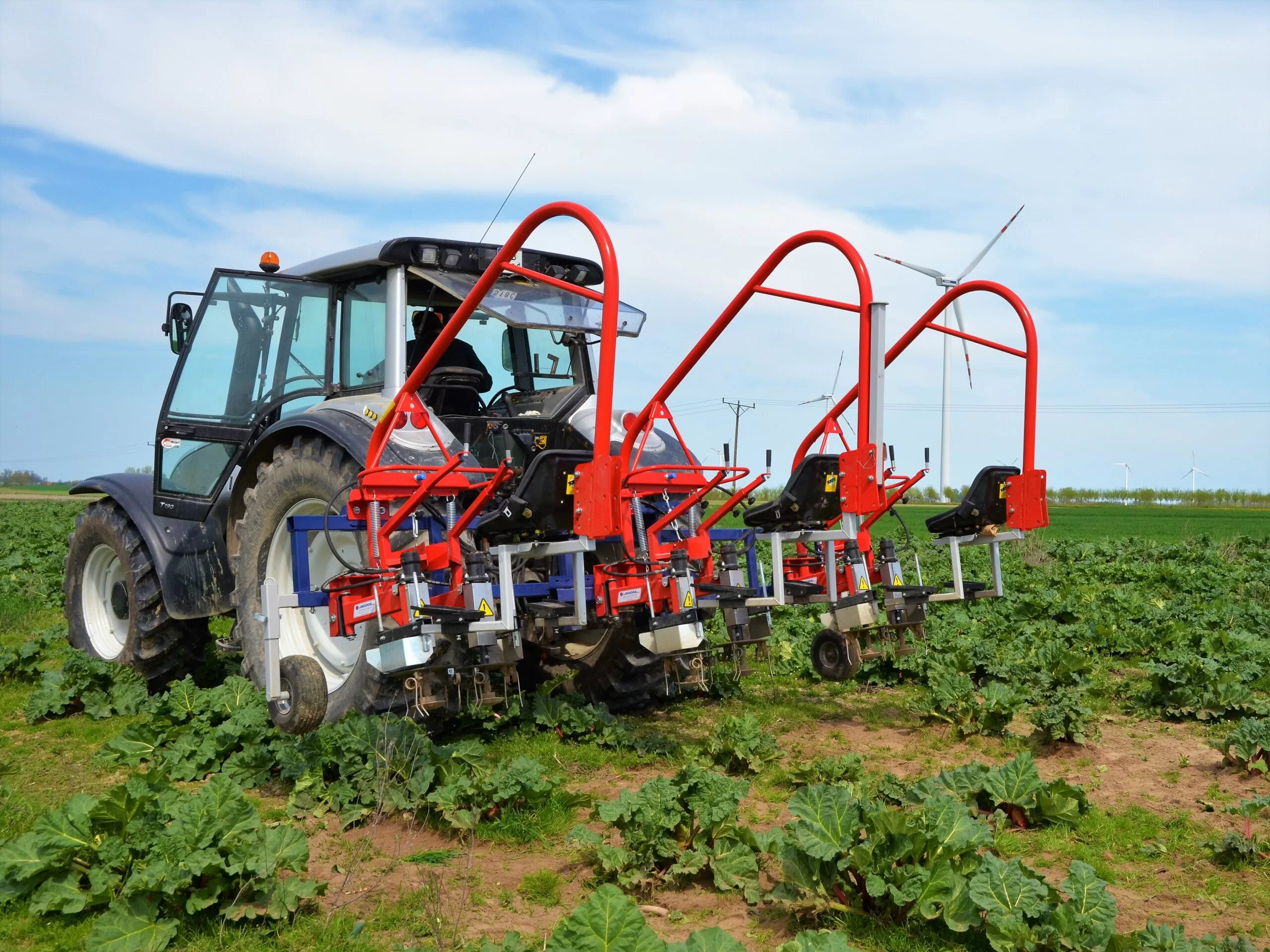

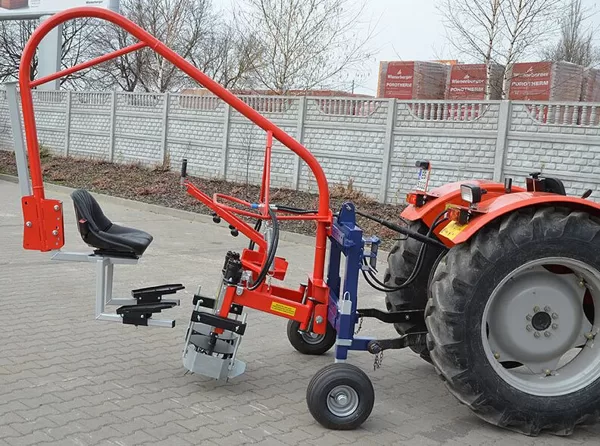

The mechanical hydraulic weeder ZUZA 3 is produced in various versions: single, double, and triple row.

Technical specs:

ZUZA 3	1-row	2-row	3-row
Attaching method:	3-point linkage system. Category 2	3-point linkage system. Category 2	3-point linkage system. Category 2
Height:	2.15m	2.15m	2.15 m
Shipment width:	1.24 m	2.4 m	2.6 m
Max working width:	1.55 m	3.0 m	4.3 m
Length:	2.22 m	2.22 m	2. 22 m
Weeding head diameter:	300 mm/225 mm	300 mm/225 mm	300 mm/225 mm
Staff required:	Tractor operator + 1	Tractor operator + 2	Tractor operator + 3
Working speed:	1 - 3 km/h	1-3 km/h	1-3 km/h
Output:	0.5-1 ha/h	1 - 2 ha/h	1.5 - 3 ha/h
Oil requirement:	25 l/min	50 l/min	Internal Hydraulic Kit
Weight:	250 kg	470 kg	1000 kg

Specification of rotor head cultivators:

The rotor heads cultivator has two sizes of rotor head cultivator: small, 225 mm, and big 300 mm
3 pairs of spring claws or vertical knives that destroy weeds. The knives are recommended to be used on stony and hard soil.
The working depth is set by changing the relative position of the rotor head and the support plate, which copies the working area from 1 cm to 4 cm
Reversible rotary motion
The vegetable weeder is equipped with a speed regulator for the rotary heads
Adjustable sweep cover of rotor heads

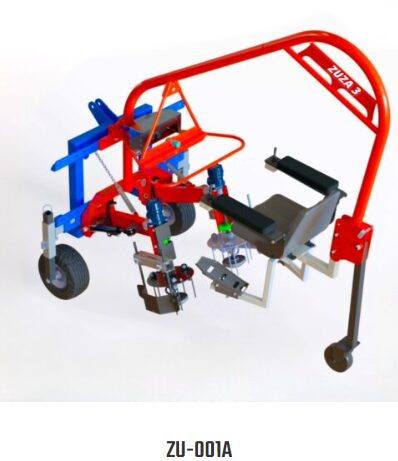

Joysticks Control System

The ZUZA 3 hydraulic weeder offers an ergonomic joystick control system, replacing traditional manual levers. This innovation reduces operator fatigue and allows for extended working hours by eliminating the need for physical strength during operation. The intuitive joystick enables precise adjustments, enhancing accuracy when navigating around individual plants at varying spacings.

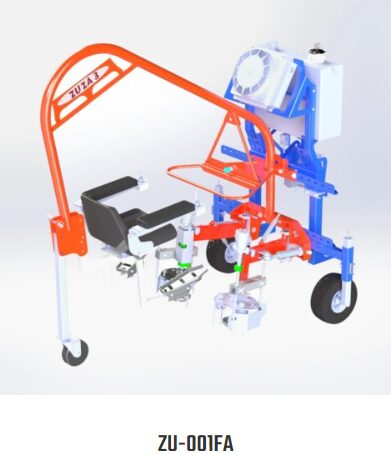

Hydraulic power unit:

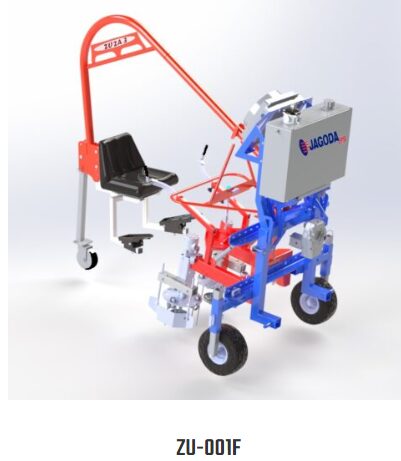

The ZUZA 3 hydraulic weeder has an integrated hydraulic power unit (HPU), which includes: 75 liter oil tank, hydraulic pump and multiplier, oil cooler.

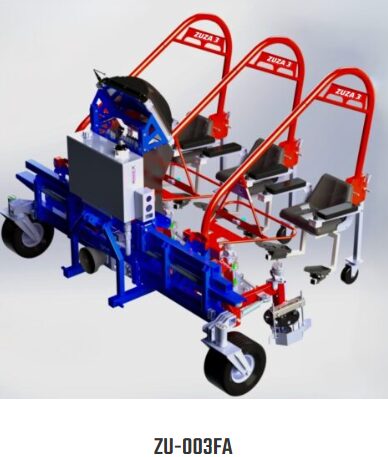

This autonomous system eliminates the need for a tractor hydraulic pump, reducing the load and extending working hours.The built-in oil cooler with a capacity of 0.25 kW/°C for version (F) and 0.45 kW/°C for versions ZU-003FA and ZU-002FA maintains optimal fluid temperature, preventing overheating and ensuring constant performance during long-term use.

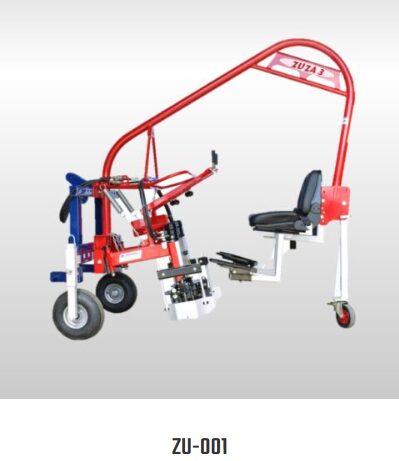

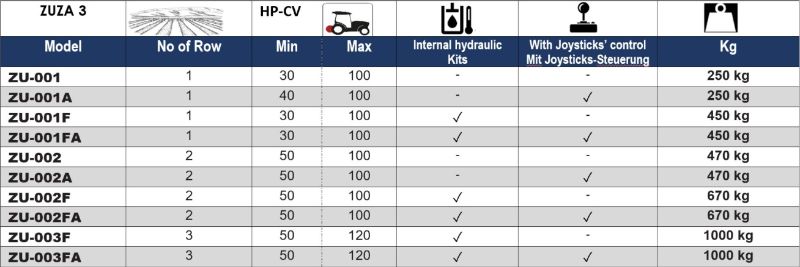

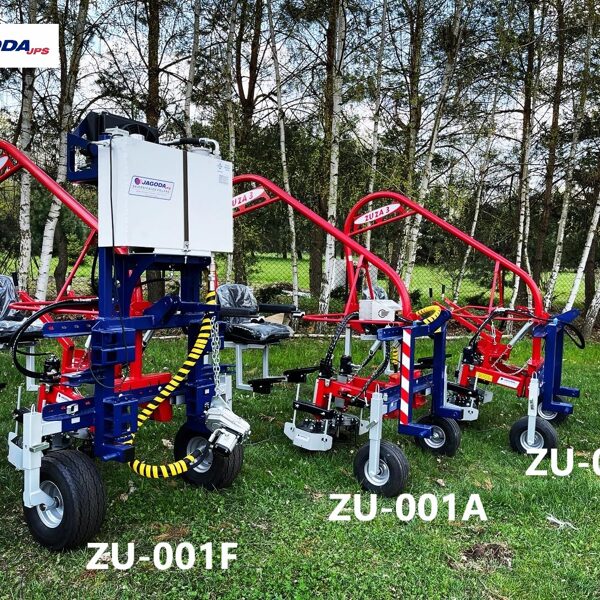

Model: Inter-row weeding machine ZUZA:


Single-Row Manual Lever Controls – Requires 20 L/min Hydraulic Flow	Single-Row Manual Lever Controls + High-Efficiency Internal Hydraulic System (F), Including 0.25 kW Oil Cooler	Single-Row Joystick Controls (A) – Requires 30 L/min Hydraulic Flow

Single-Row Joystick Controls (A) + High-Efficiency Internal Hydraulic System (F), Including 0.25 kW Oil Cooler	2-Row Manual Lever Controls + Optional Hydraulic Width Shifting Control (H) – Requires 40 L/min Hydraulic Flow	2-Row Manual Lever Controls + High-Efficiency Internal Hydraulic System (F), Including 0.25 kW Oil Cooler + Two Hydraulic Width Shifting Controls (H)

2-Row Joystick Controls (A) + High-Efficiency Internal Hydraulic System (F), Including 0.45 kW Oil Cooler + Two Hydraulic Width Shifting Controls (H)	2-Row Manual Lever Controls + High-Efficiency Internal Hydraulic System (F), Including 0.25 kW Oil Cooler + Two Hydraulic Width Shifting Controls (H)	3-Row Joystick Controls (A) + High-Efficiency Internal Hydraulic System (F), Including 0.45 kW Oil Cooler + Two Hydraulic Width Shifting Controls (H)

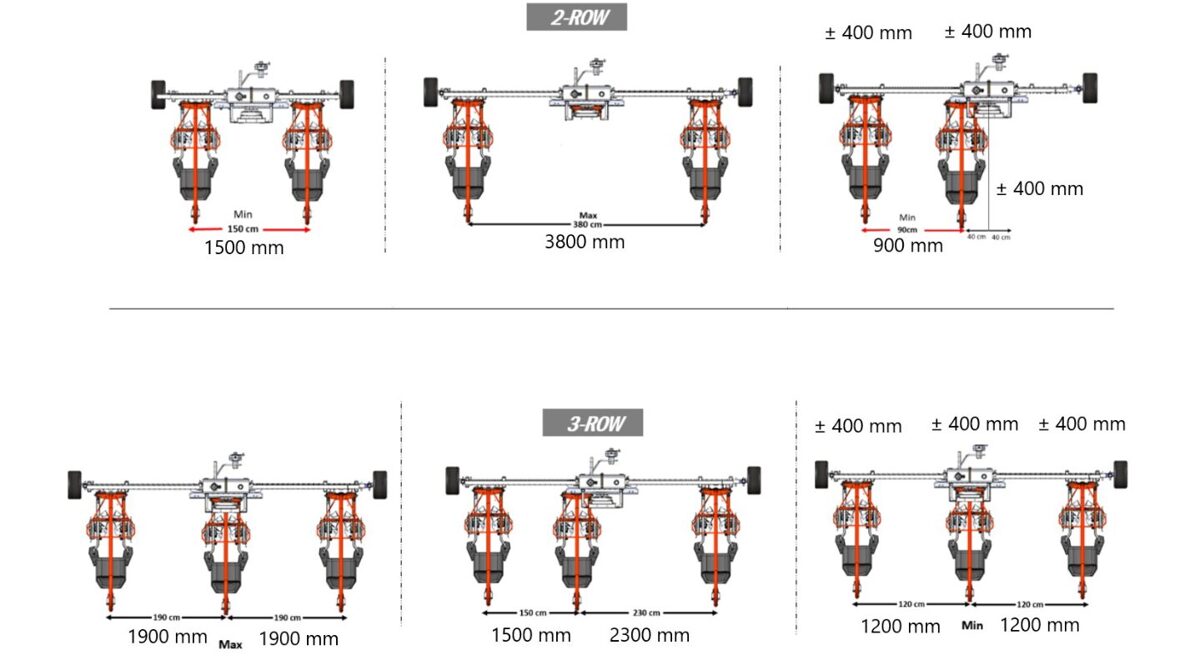

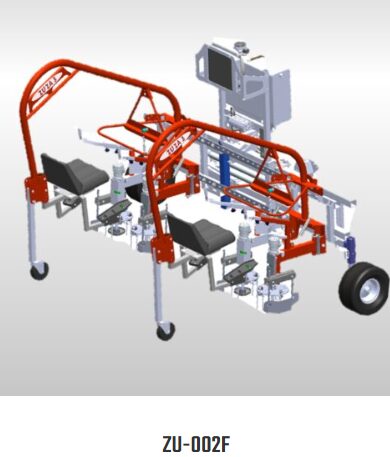

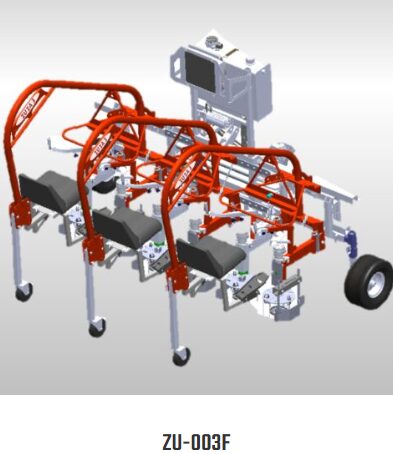

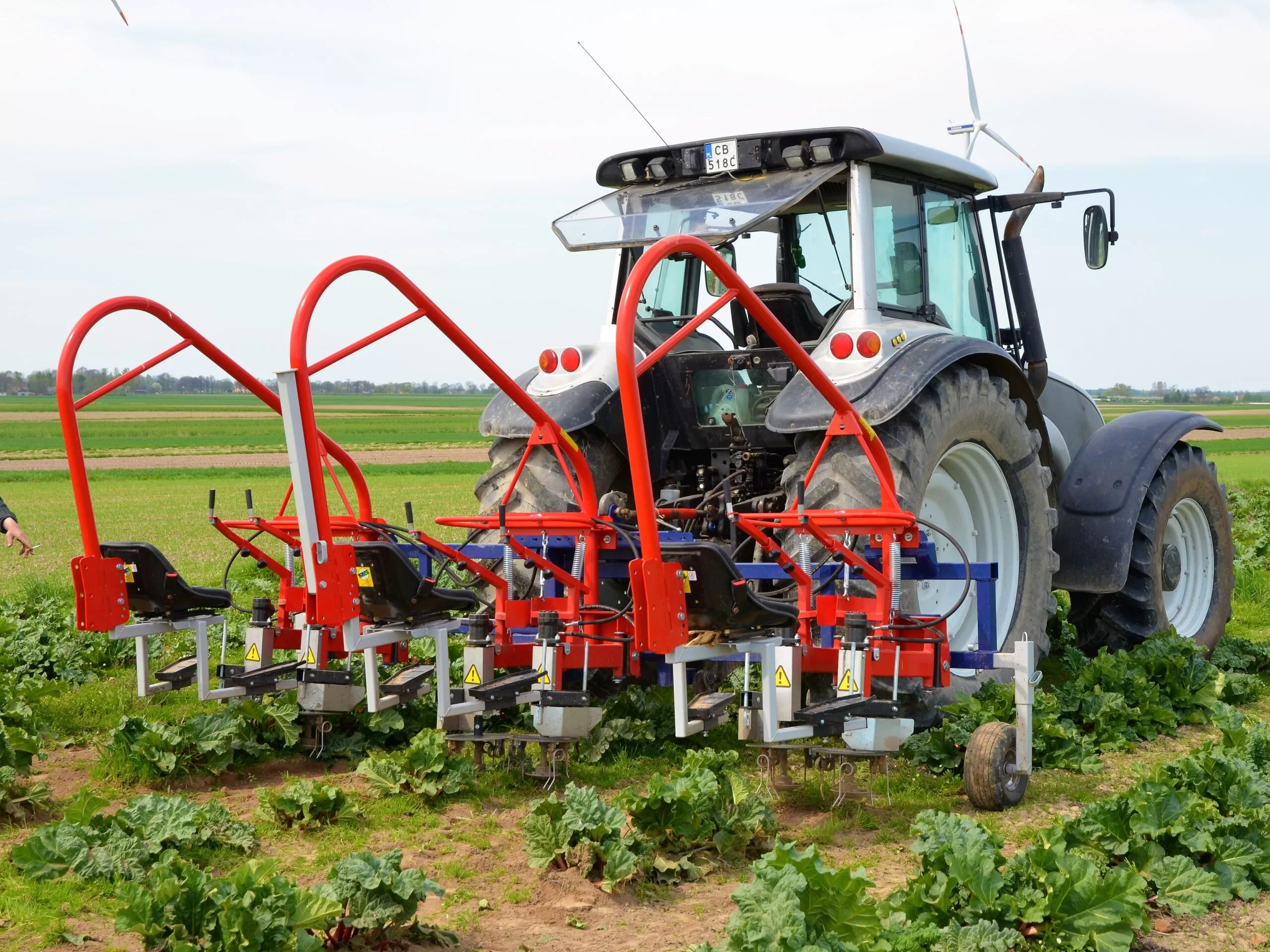

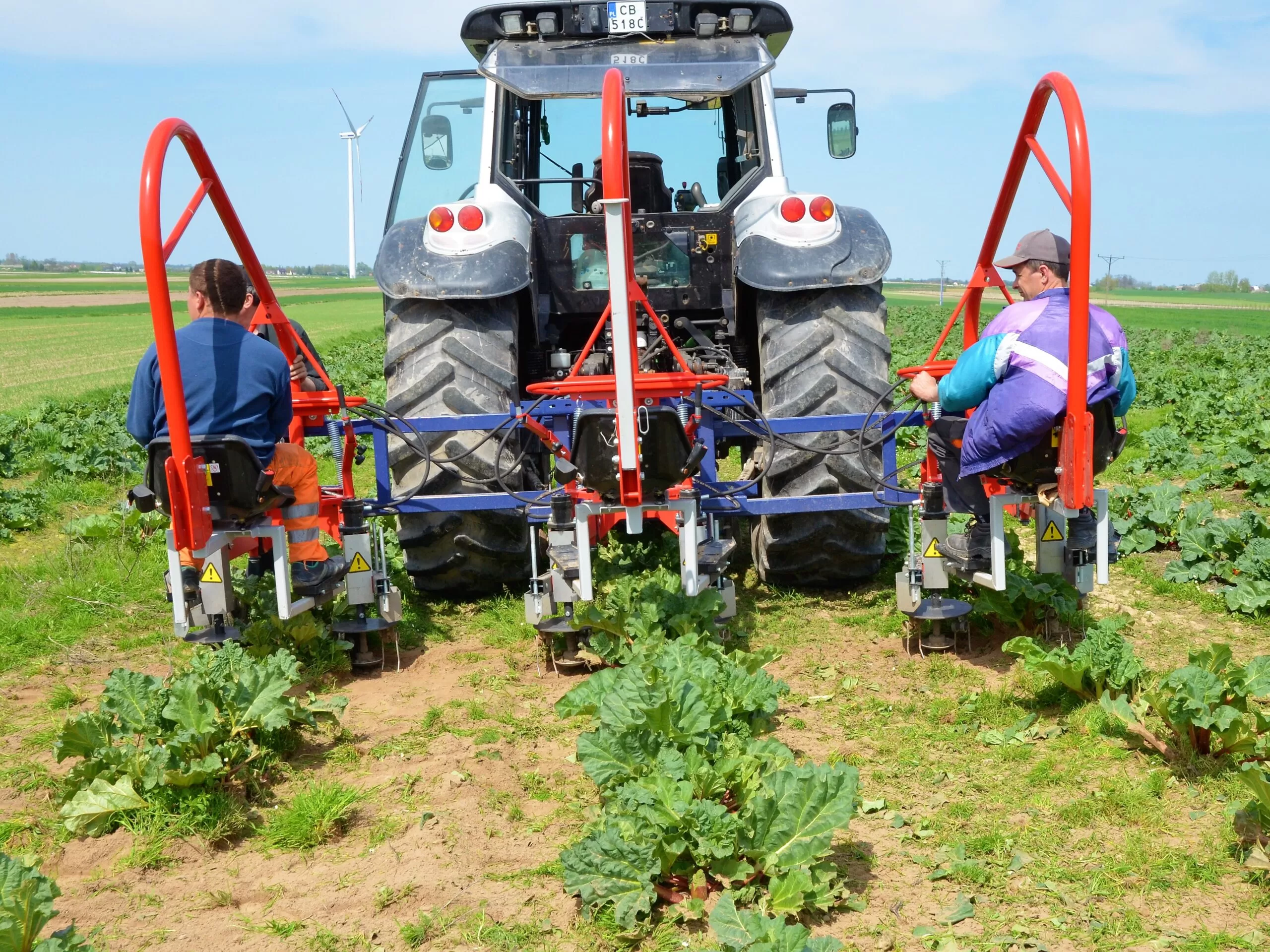

The mechanical hydraulic weeder is engineered for flexibility in double- and triple-row crop systems. It utilises hydraulic cylinders to adjust the spacing between rows, accommodating various crop layouts.
In joystick-controlled versions, the weeder features a front-mounted control panel on the first and third rows, enabling operators to modify the working width dynamically during operation. Additionally, the system can be managed directly from the tractor cabin.
These design elements make the weeder particularly suitable for organic farming practices, where precise and adaptable weed control is essential. Hydraulic adjustability and user-friendly controls ensure effective management of different crop layouts and soil conditions.

Brochure
