Compost turner GUJER TG 233

Working width up to 2.5 m

komposta_maisitajs_TG233-1.jpgTechnical data TG 233
  • Conversion capacity up to 400 m³/h
  • Transfer shaft width 2.3 m
  • Overall width in transport position open
  • Working width up to 2.5 m
  • Total length in transport position 3.1 m
  • Internal tunnel height 1.35 m
  • Working speed, ideal max. 300 m/h
  • Weight approx. 800 kg
  • Rental width x height 2.5 x 1.2 m


Basic equipment TG 233 - hydraulic version

  • Tunnel with chrome steel plates
  • Support wheel on the outside of the tunnel
  • Mechanical feed plates


Requirements for the compact and telescopic loader
  • For vehicles with an overall width of up to 2.3 m
  • For vehicles from 45 hp
  • Working pressure of the hydraulics must reach at least 200 bar, with at least 70 litres of oil per min.
  • Ideal accelerator pedal

Options

  • Water spray bar
  • Fleece guides front and rear
  • Faster incl. parking bracket
  • Widening plates set *
  • Euro mount
  • External loader mount

* For machine widths from 2.30 m

Ideal for agriculture, market gardens, organic farms and small communes with a composting capacity of up to 2000 tonnes per year.

  • Turning capacity up to 400 m³/h.
  • Manoeuvrable machine; the TG 233 compost turner is only 3.1 m long in the transport position.
  • Low maintenance costs, very simple maintenance.
  • Easy handling, simple operation.
  • The solid arch construction of the tunnel made of 5 mm steel achieves very high stability, has no weak corners and the powder coating prevents corrosion.
  • All wear plates are made of chrome steel.

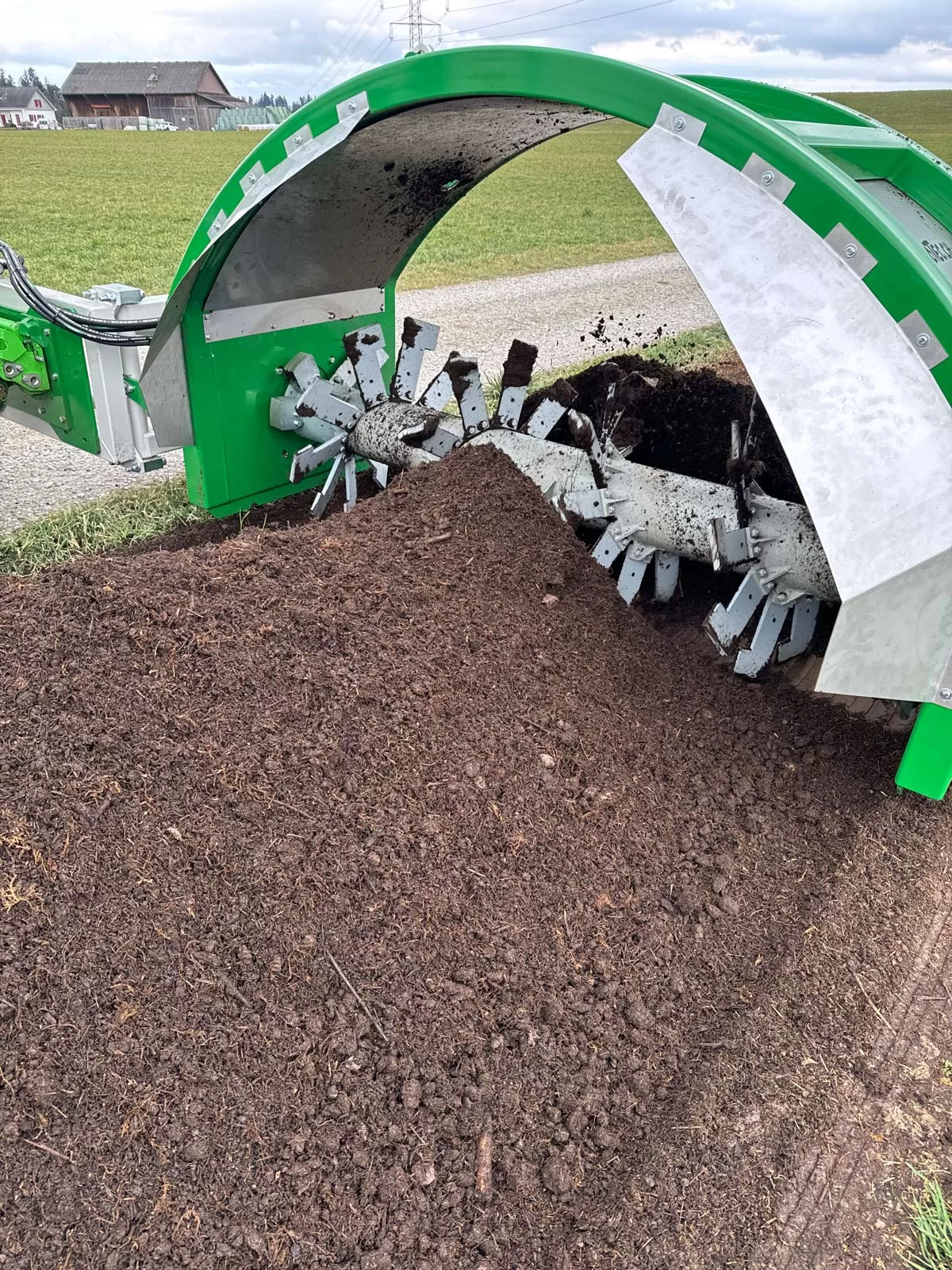

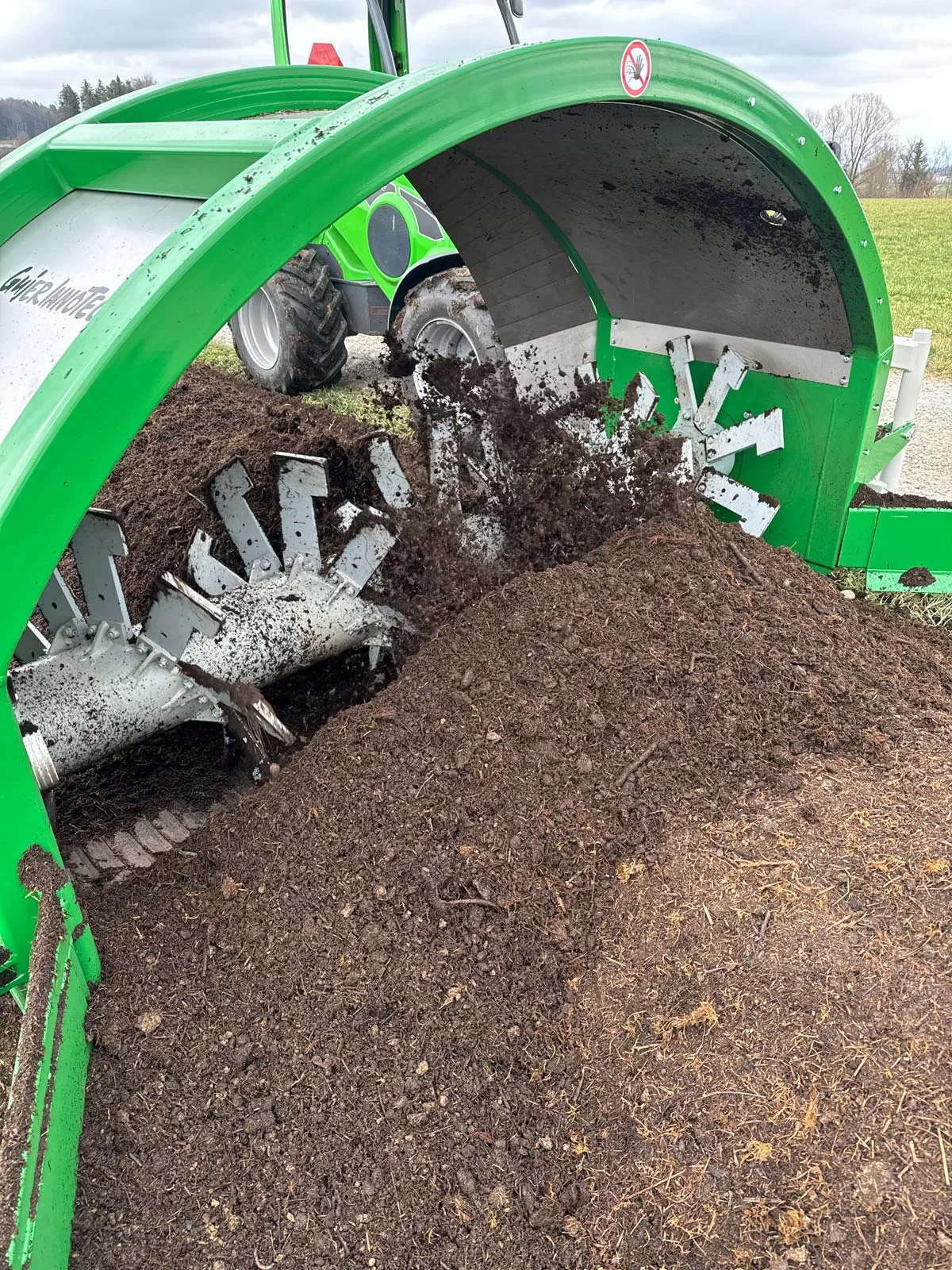

  • Robust, balanced turning shaft that turns the material to be composted correctly (from the inside to the outside).
  • Rapid aerobic composting; within 8 - 12 weeks, depending on the material.
