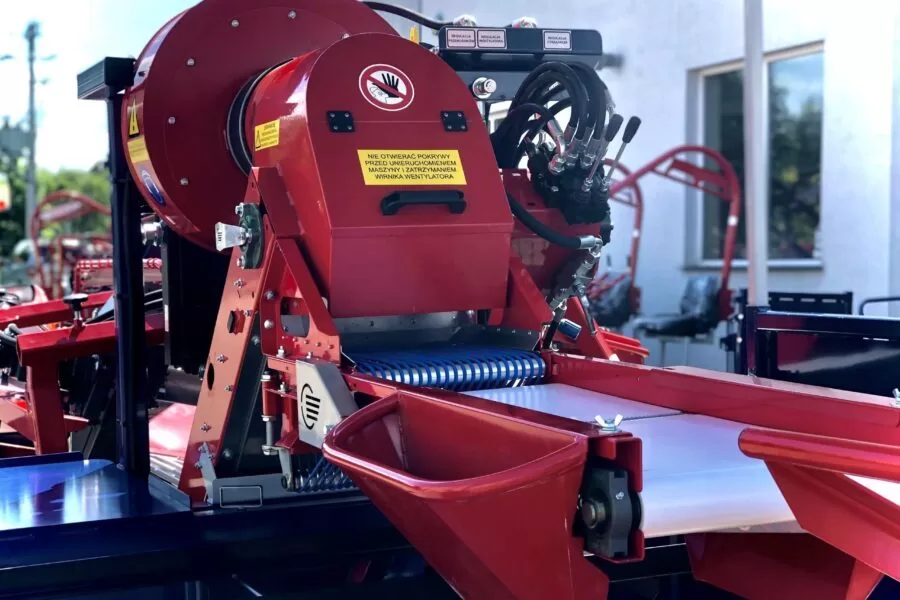

Raspberry harvester JAREK 5R

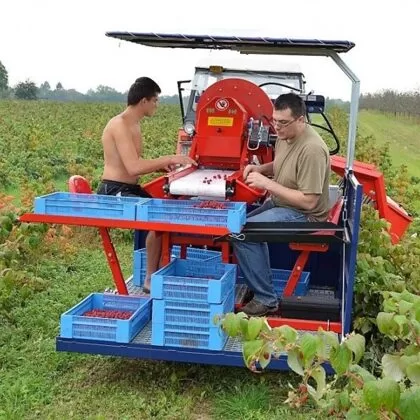

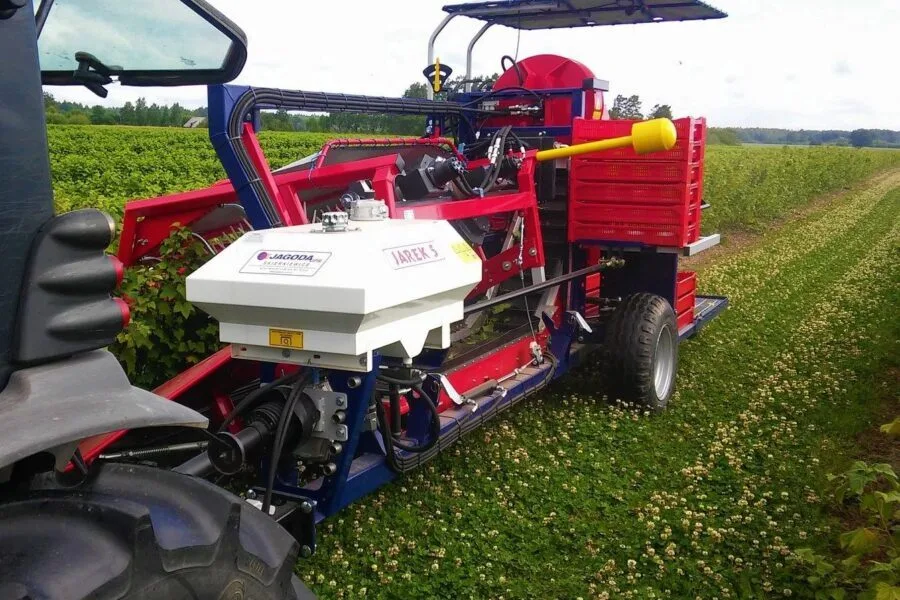

The JAREK 5R raspberry harvester is designed for mechanical harvesting of raspberry bushes in plantations.

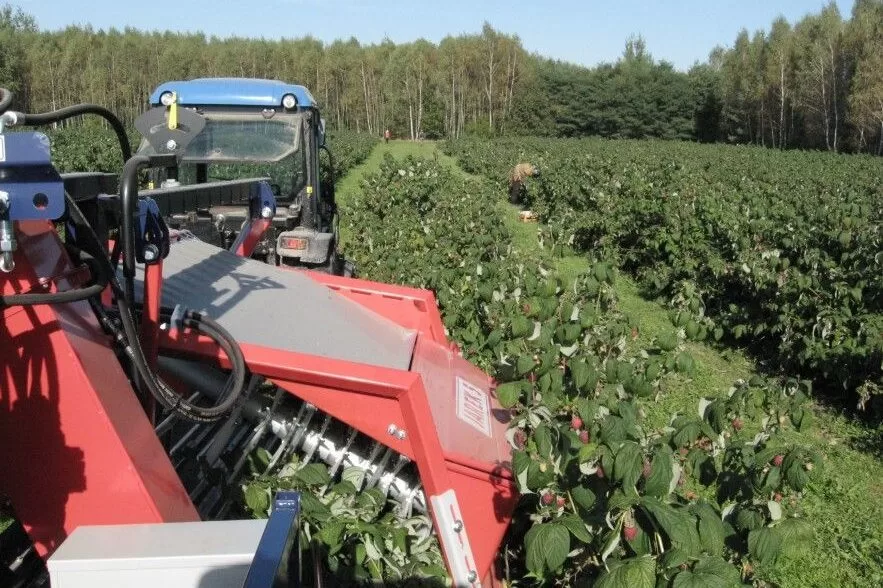

- The JAGODA RASPBERRY JAREK 5R raspberry harvester harvests half of a row of bushes, so to harvest the entire row, the harvester must be driven along both sides of the row.
- A Tractor with low operating speed should be used for the power drive and it requires min. 30 HP / PTO at 300 rpm.
- The working speed of the RASPBERRY JAREK 5R depends on the size of the crop - the more berries and the larger the crop, the lower the working speed.
- The raspberry harvester JAGODA RASPBERRY JAREK 5R is a simple construction machine that serves reliably and does its job cleanly. With the correct adjustment of the working mode and the selection of the appropriate working speed, the harvester is able to harvest up to 99% of the crop, losing only 1%.
Main improvements of the RASPBERRY JAREK 5R harvesting machine compared to the JAREK 5 berry harvester:
- Shaking element with plastic tines
- Pre-separator that removes small impurities

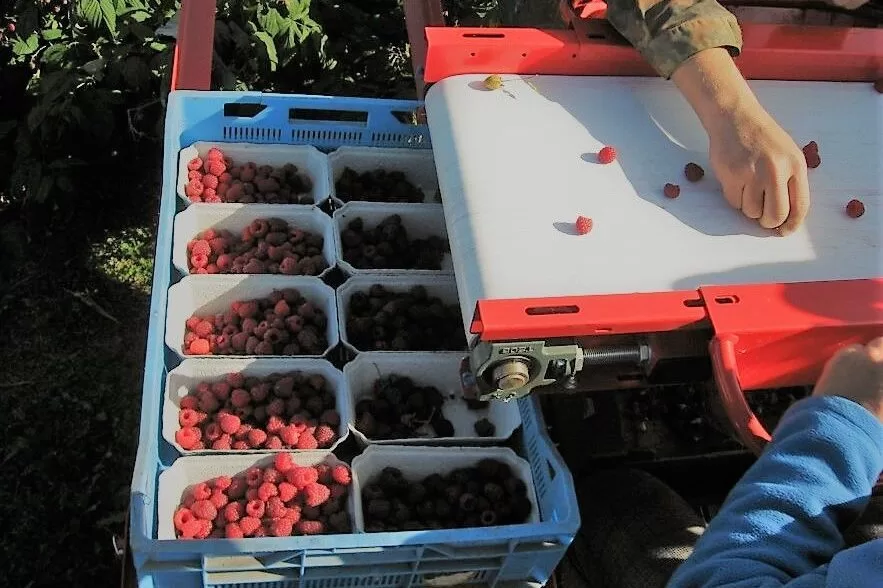

- Additional conveyor belt that facilitates the removal of damaged raspberries
| Attaching method: | Hook to the tractor joist. Category 2 |
| Drive: | External hydraulics of the tractor – control of the harvester’s operating assembly. Drive of workgroups – hydraulic pump through the transmission. |
| Tractor power demand: | Min. 22 kW / 30 hp |
| Working speed: | 0.3-1.0 km/h |
| Harvester Output: | 0,05-0,1 ha/h |
| Weight: | 1950 kg |
| Working Height: | 2,5 m |
| Shipment Height: | 2,0 m |
| Working Length: | 6,8 m |
| Shipment Length: | 6,8 m |
| Working Width: | 2,6 m |
| Shipment Width: | 2,4 m |
