Automatic tree shaker GACEK
Ideal for Tree Sour Cherry, & Plum Harvesting
The GACEK Automatic Tree Shaker - most economical design for stone fruit harvesting.
Specifically designed for harvesting sour cherries, almonds, plums, and other stone fruits growing in rows, the GACEK automatic tree shaker stands out as advanced harvesting machine. With its automatic tarpaulin designed to catch the fruit, seamlessly operable through automated opening and folding mechanisms.

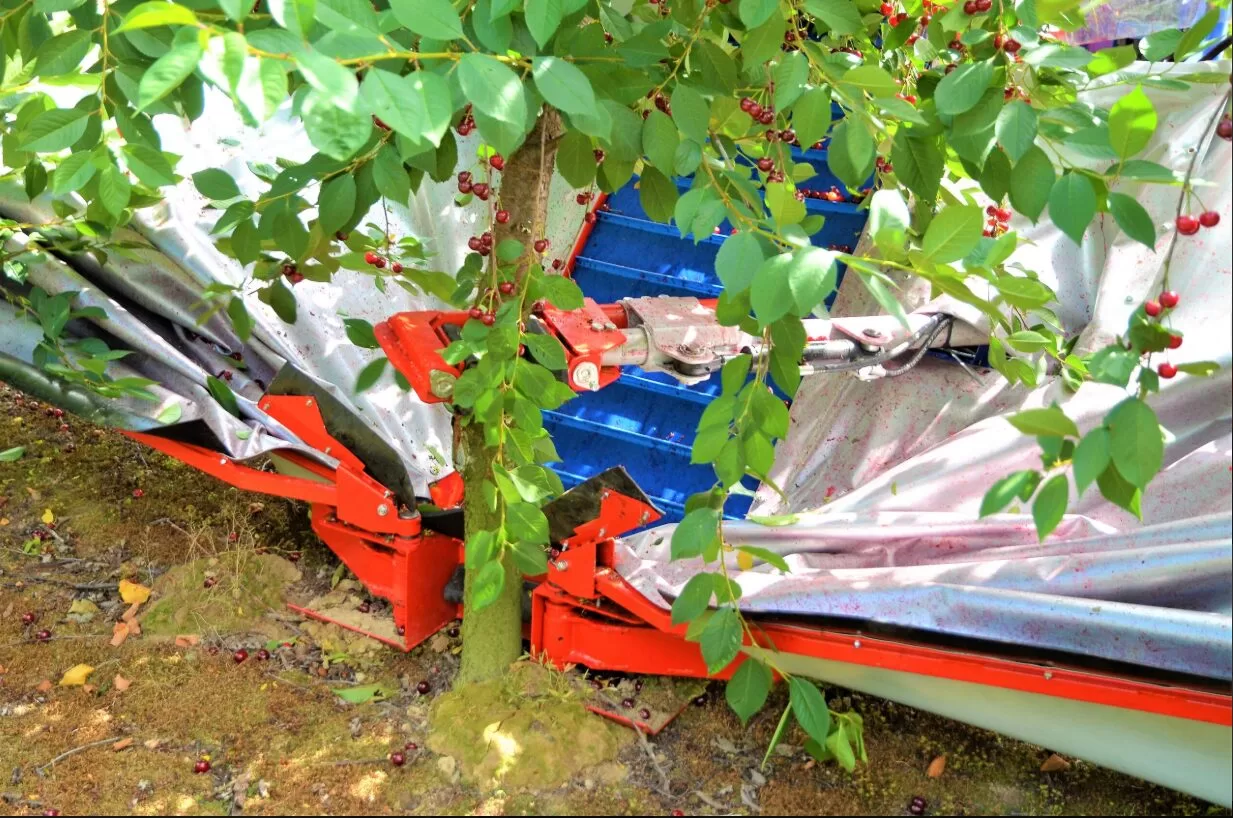

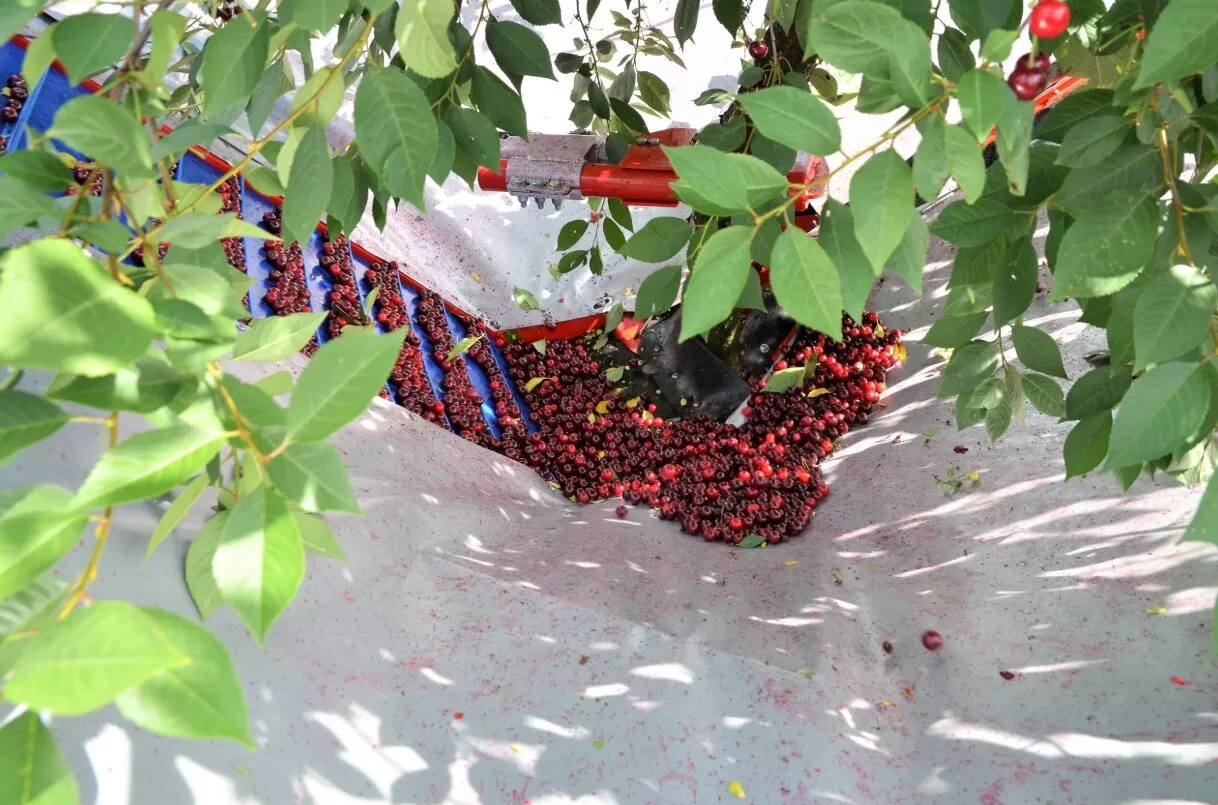

- The GACEK pull-type harvester, featuring an exclusive shaking head design, grips the trunk, gently shakes it to loosen the fruit onto a reversed umbrella (trapline), and efficiently transports them via a conveyor belt. A built-in fan removes leaves and all impurities, ensuring the clean collection of fruit into either a large 500 kg box or smaller boxes.
- High-Quality Fruit & Tree Protection: Gentle shaking minimizes fruit damage, resulting in a premium harvest. The shaking head is designed to avoid tree damage, with vibration strength easily adjustable by modifying the mass of the rotating parts of the shaker head.
- Fast Operation: Under optimal conditions, the GACEK can harvest 50-60 trees per hour.
- Ideal for Family Farms: Capable of managing orchards up to 7 hectares with just 2-3 people.
Key GACEK Characteristics:

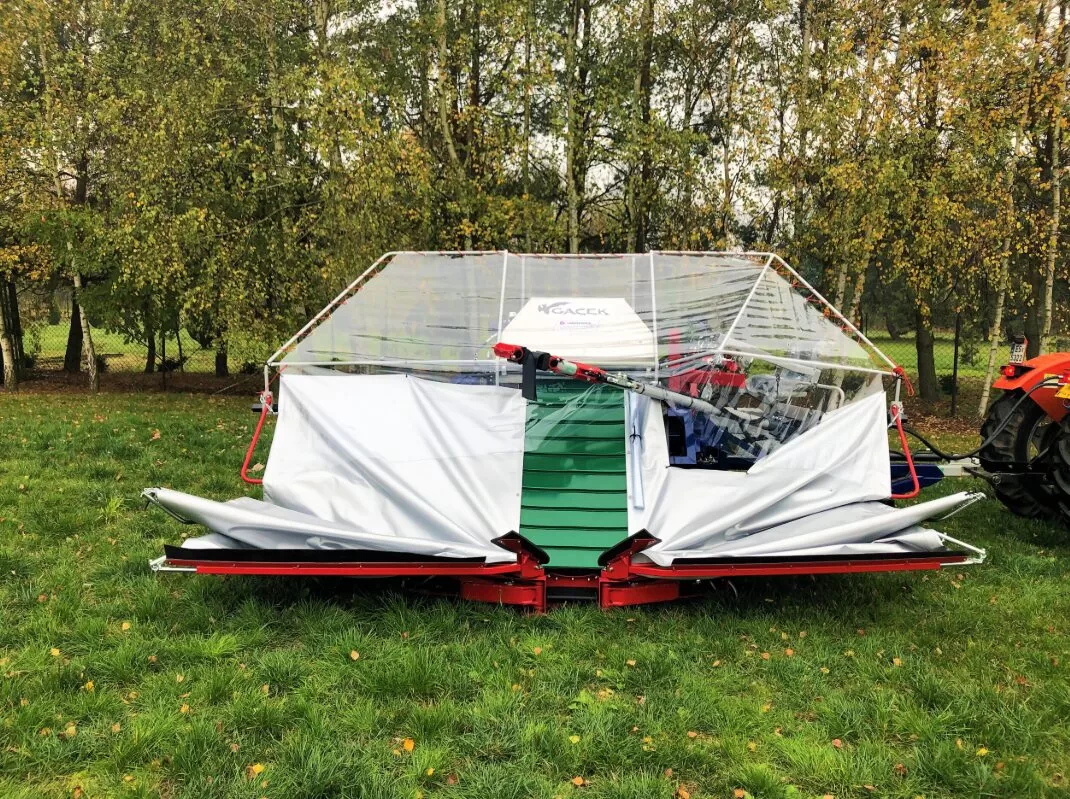

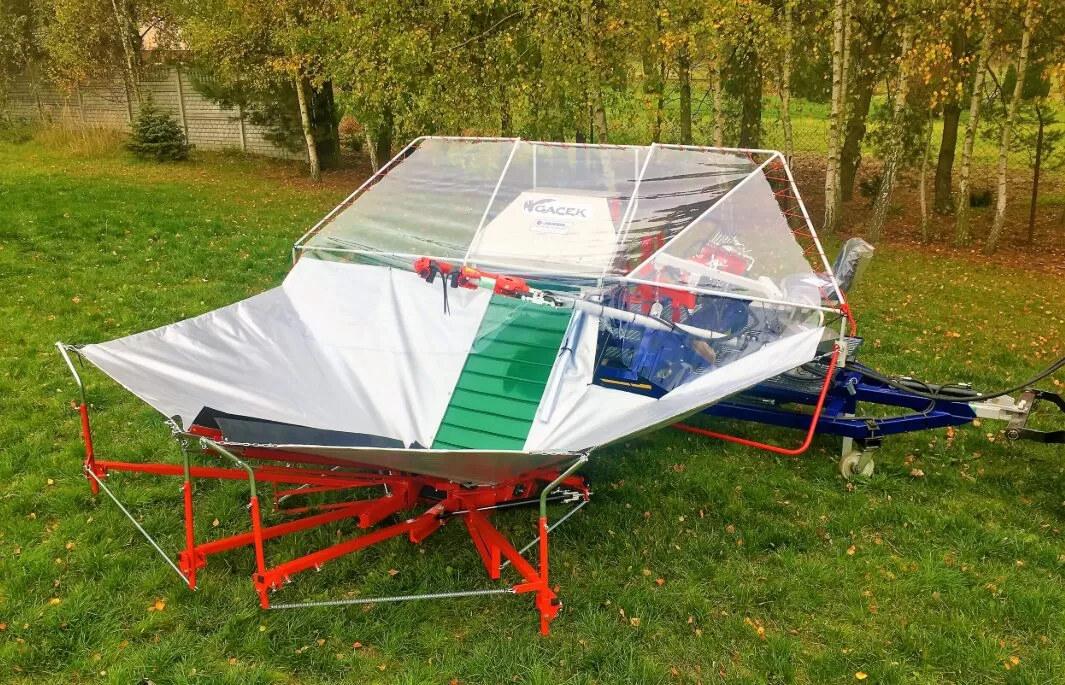

- Effortlessly catches falling fruit with automatic unfolding and folding tarpaulin.

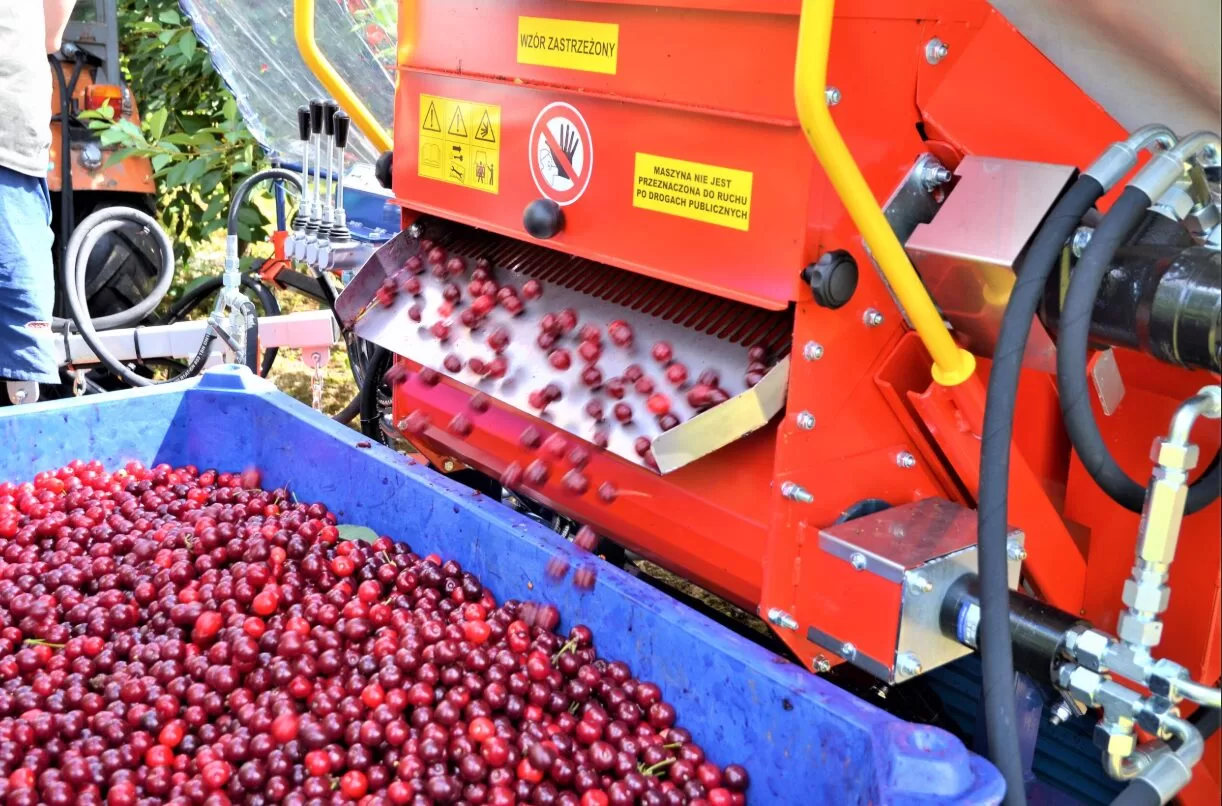

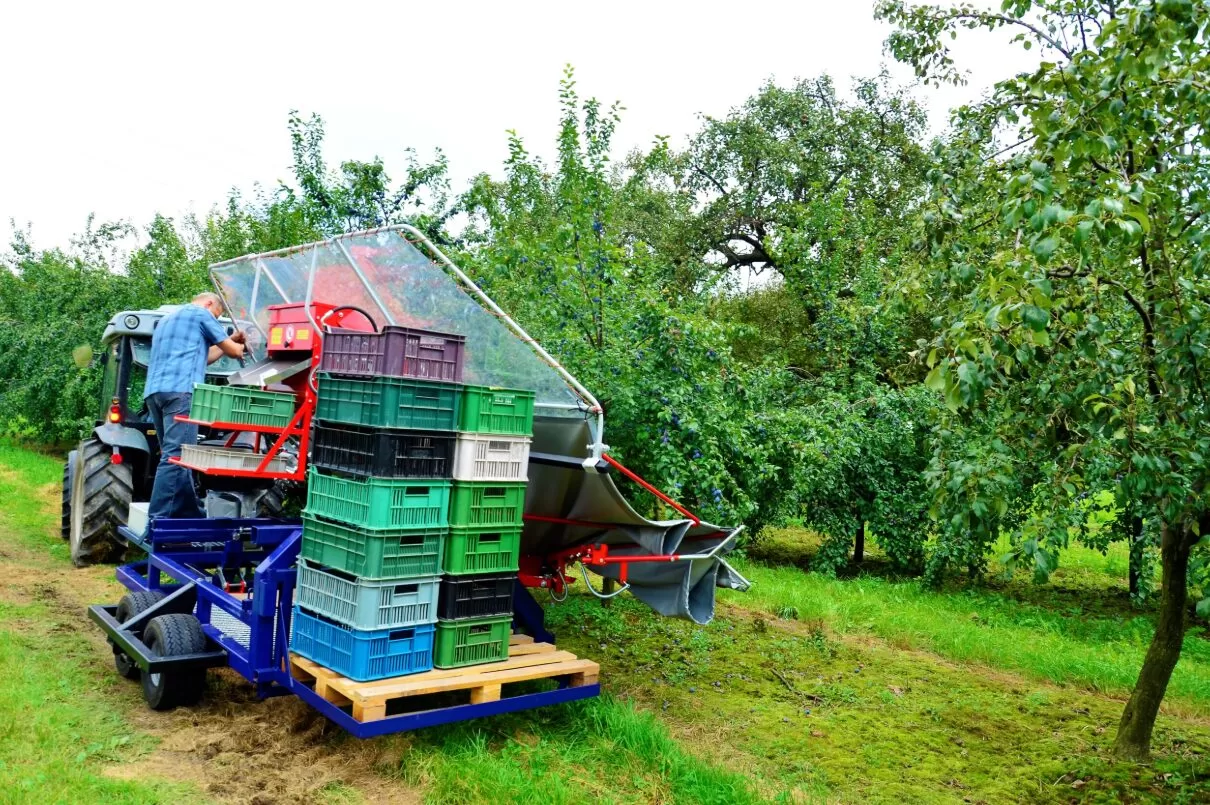

Clean Fruit Collection: A built-in fan removes impurities like leaves and twigs. Fruits are then deposited into small boxes for easy handling and transport.
The GACEK equipped with hydraulic pallet lifter capable of handling 500 kg pallet boxes.
Preparing orchard for mechanical harvest:
Proper orchard preparation is key to maximizing the effectiveness of GACEK fruit tree shaker and achieving the best results.
- Row Spacing: Minimum 4 meters (13.1 feet)
- Trunk Height: Minimum of 0.7 meters (2.3 feet)
- Distance between trees in a row (min): 2.2 meters (7.2 feet)
- Tree Size: Maximum crown diameter of approximately 3.9 meters (12 feet)
- Maximum trunk diameter:
– P20 model: Up to 22 cm (8.7 inches)
– P30 model: Up to 30 cm (11.8 inches)
Technical parameters of the fruit tree shaker GACEK:
| Transport length: | 4.8 m |
| Max. working length: | 5.2 m |
| Total transport width: | 2.4 m |
| Max. working width: | 3.7 m |
| Height: | 2.4 m |
| Weight: | 1300 kg |
| Mounting method | Hook to the tractor joist. Category 2 |
| Harvesting speed: | 50-60 trees/h (depending on the size of the crop) |
| Harvesting purity: | ~95% |
| Number of operators: | Tractor driver + 1-2 shaker operators |
| Scope of paws grip : | 50 - 220 mm |
