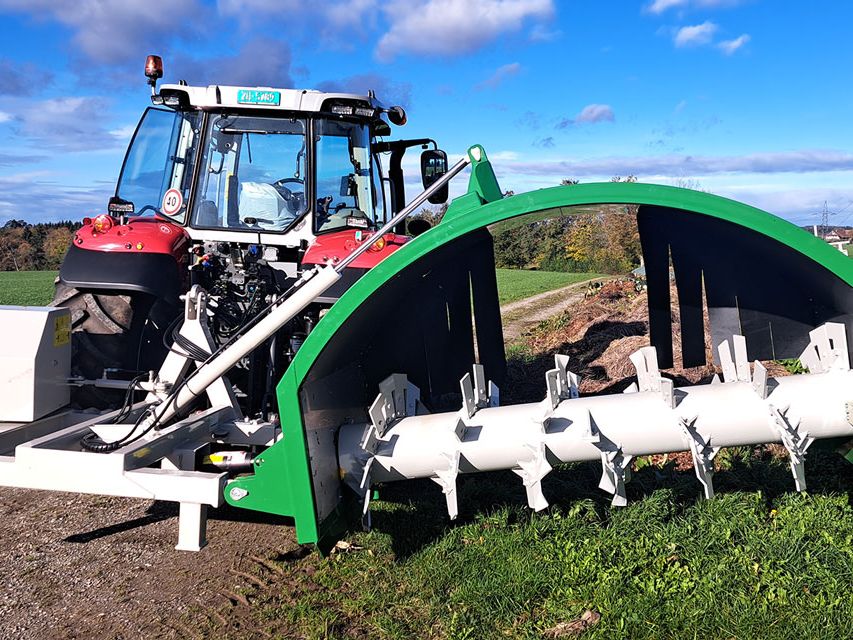

Ideal for field edge, small site composting and organic farms with composting up to 6,000 tons per year. - Conversion capacity up to 700 m³/h.
- Small machine; the TG 263 is only 2 m long.
- Weight: 2200 kg
- Low maintenance costs, simplest maintenance.
- Easy handling, simple operation.
- The massive arch construction of the tunnel made of 6 mm steel achieves a very great stability, has no weak corner points and the Powder coating prevents corrosion.
- All wear plates are made of chrome steel.
- Robust, balanced transfer shaft that properly transfers the material to be composted (from the inside to the outside).
- Fast aerobic composting; within 8 - 12 weeks, depending on the material.
- Large wide tires and thus little ground pressure.
- Thanks to swiveling side weight; protection of field and field paths and optimal weight distribution.
- This reduces the total weight of the machine up to 1,500 kg.
- Large Support wheel of the transfer tunnel. Swiveling without tools and in seconds. (The road transport with the wheel swung back is possible without any problems).
Basic equipment: - Cardan shaft with shear bolt
- Cardan shaft Gearbox reduction shaft
- Tunnel with chrome steel plates
- Direct drive on transfer shaft
- "Large support wheel on the outside of the tunnel
- (swivelling, for transport)"
- Mechanical feed plates
- side weight
Many options retrofittable such as: - Blade right hydraulic
- Hydraulic side offset
- Irrigation pipe at front with baffle plate nozzles (7 pcs.)
- 3rd support foot (for suspending in working position)
- LED lighting
- Water connection at the rear
- Tile guide front and rear
- Stone protection rubber on the right
- Water pump 180 litres
- Water pump 280 litres
|
Your advantage A great advantage of this machine is its compact length (< 2m). The total weight is reduced to 2.2 t.. The 3-point beam fits both tunnel models 2.6m & 3m. Weight: 2200 kg Prerequisite for the tractor - 3-point TG 263 is suitable for tractors from 110 hp and min. 3 tonnes payload
Brochure TG 263
|
